Railway Steel Bridge
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- Overview
- Recommended Products
Product Overview
The Railway Steel Bridge is a high-strength, precision-engineered bridge system designed specifically for heavy-load railway transport, including conventional railways, high-speed railways, freight railways, metro/light rail, and industrial rail tracks.
Built with high-strength structural steel (Q355/Q370/Q420/Q460 or ASTM/EN equivalents), railway steel bridges are capable of withstanding heavy axle loads, strong dynamic impact, vibration, and long-term cyclic fatigue, making them one of the most demanding categories in bridge engineering.
Common types include:

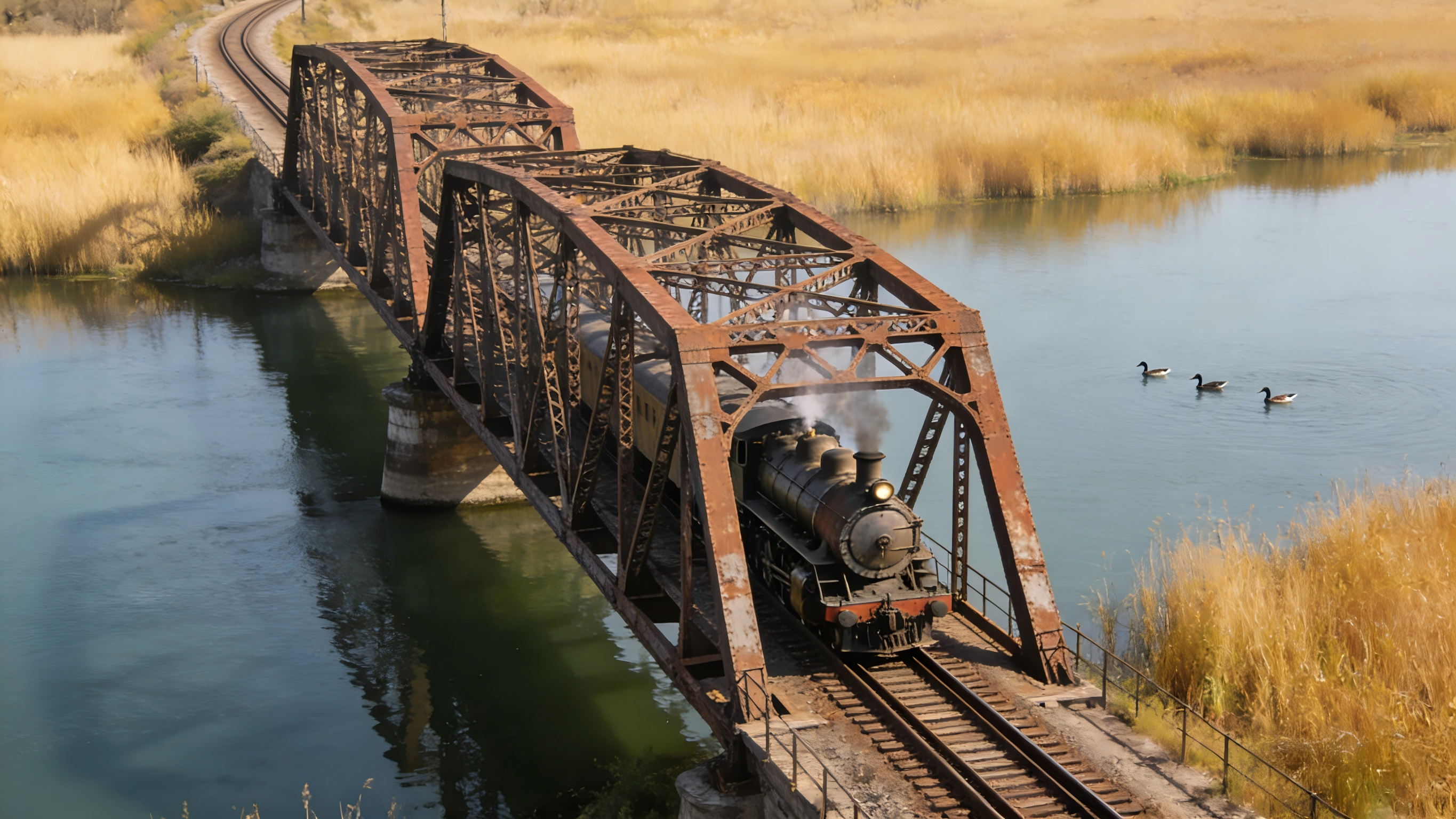

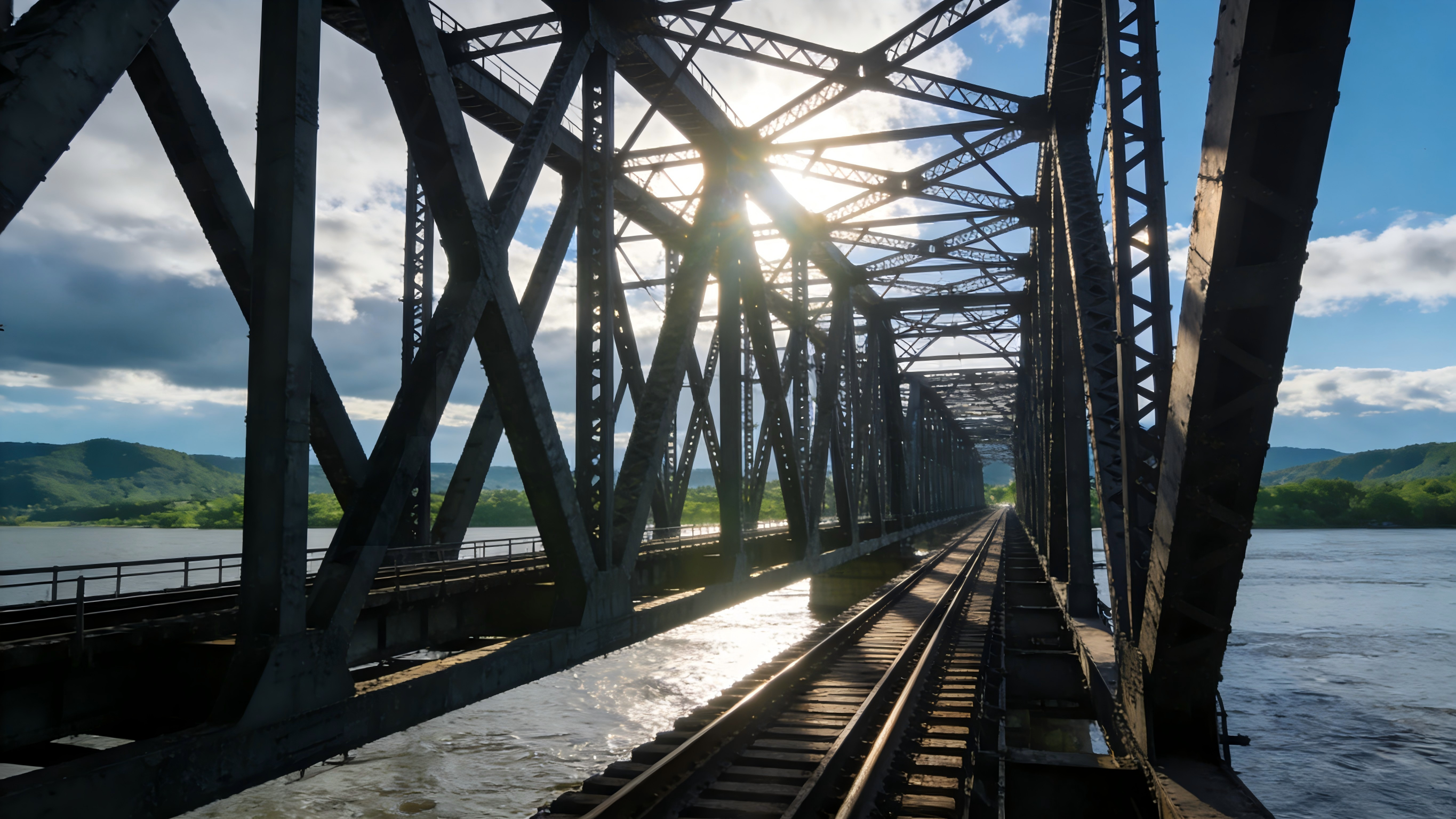

Steel Truss Railway Bridge
Steel Plate Girder Railway Bridge
Steel Box Girder Railway Bridge
Steel Arch Railway Bridge
Composite Steel–Concrete Railway Bridge
Modular/Temporary Railway Bridge
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Key Advantages
Extremely High Load Capacity
Designed for heavy axle loads and high-frequency vibration, meeting global railway standards.
Superior Fatigue Resistance
Optimized welded structure & reinforced joints ensure exceptionally long fatigue life.
High Dimensional Precision
Essential to ensure rail alignment, smooth track transition, and passenger comfort.
Fast Construction & Minimized Traffic Disruption
Prefabricated modules reduce on-site construction time by 40–60%.
Long Service Life (80–120 Years)
With advanced anti-corrosion technologies and weather-resistant steel.
Excellent Adaptability
Suitable for river crossings, mountains, valleys, cities, and industrial zones.
Low Maintenance Requirement
Easy inspection of steel components compared to concrete bridges.
Technical Features & Production Process
Technical Features
High-strength structural steel: Q355/Q370/Q420/Q460, S355/S460, ASTM A572 Gr.50/70
Optimized truss/box girder structure for heavy railway loads
Anti-fatigue detailing: thickened plates, optimized welds, ribbed stiffeners
Engineering with FEM & dynamic simulation for vibration control
Multiple corrosion-protection systems:
Hot-dip galvanizing
Zinc-rich epoxy + polyurethane coating
Weathering steel (Corten)
Integrated systems: guardrails, walkway, cable conduits, drainage
Suitable for high-speed trains (up to 350 km/h)
Production Process
Railway bridge structural design & dynamic analysis
Material selection & steel plate testing
CNC laser/plasma cutting
Girder/truss assembly & robotic welding
Ultrasonic, magnetic particle & radiographic testing (NDT)
Surface blasting & corrosion protection
Pre-assembly & full inspection
Modular packaging & bridge segment delivery
On-site erection using cranes or launching gantries
Technical Specifications (Customizable)
| Item | Specification Range |
| Bridge Type | Truss / Box / Plate Girder / Arch / Composite |
| Span Length | 12 m – 150 m (single span) |
| Track Type | Standard gauge / narrow gauge / high-speed rail |
| Load Standard | AREMA / EN 1991-2 / BS5400 / Chinese Railway Grade |
| Steel Grade | Q355–Q460, S355–S460, ASTM A572 Gr.50/70 |
| Corrosion Protection | Galvanized / Epoxy-PU / Weathering steel |
| Vibration Control | Tuned mass dampers / stiffened deck |
| Design Life | 80–120 years |
| Wind Resistance | Up to 200 km/h |
| Seismic Resistance | Up to 8–9 grade |
Application Scenarios
National & High-Speed Railway Lines
Freight Railways & Heavy-Load Industrial Transport
Urban Metro & Light Rail Systems
River & Valley Crossing Bridges
Mountain Railway Bridges
Railway Overpasses & Flyovers
Temporary / Emergency Railway Bridges
Mining Rail Transport Networks
Why Choose Us
Expert Railway Bridge Engineers
Skilled in AREMA, EN1993/1991, BS5400, and Chinese railway standards.
State-of-the-Art Manufacturing Facilities
Robotic welding, CNC cutting, full NDT testing, strict QC tracking.
High Safety & Reliability
Proven performance under high-speed trains and heavy freight loads.
Customized Engineering Solutions
Dynamic analysis, fatigue assessment, 3D modeling, and erection planning.
Global Export & Project Experience
Bridges supplied to Asia, Africa, Middle East, Europe, and South America.
One-Stop Service
Design → Fabrication → Transportation → Installation guidance → After-sales support.
