Steel structure airport

Description

The steel structure airport terminal building products of Shandong Guoshun Construction Group Co., Ltd. integrate ultra large span spatial structures (120 meter column free design), rapid construction (60% shorter than traditional processes), excellent seismic resistance (meeting 9-degree fortification requirements), and intelligent operation and maintenance (2000+IoT sensor real-time monitoring). It adopts a bidirectional orthogonal truss and cable membrane composite structure to achieve a node bearing capacity of 15000kN. Through modular prefabrication , it can achieve a daily lifting speed of 300 tons, equipped with friction pendulum supports and photovoltaic integrated roofs. It has been successfully applied in multiple benchmark projects, and can reduce carbon emissions by 35% throughout the life cycle and obtain LEED platinum certification.

Introduction

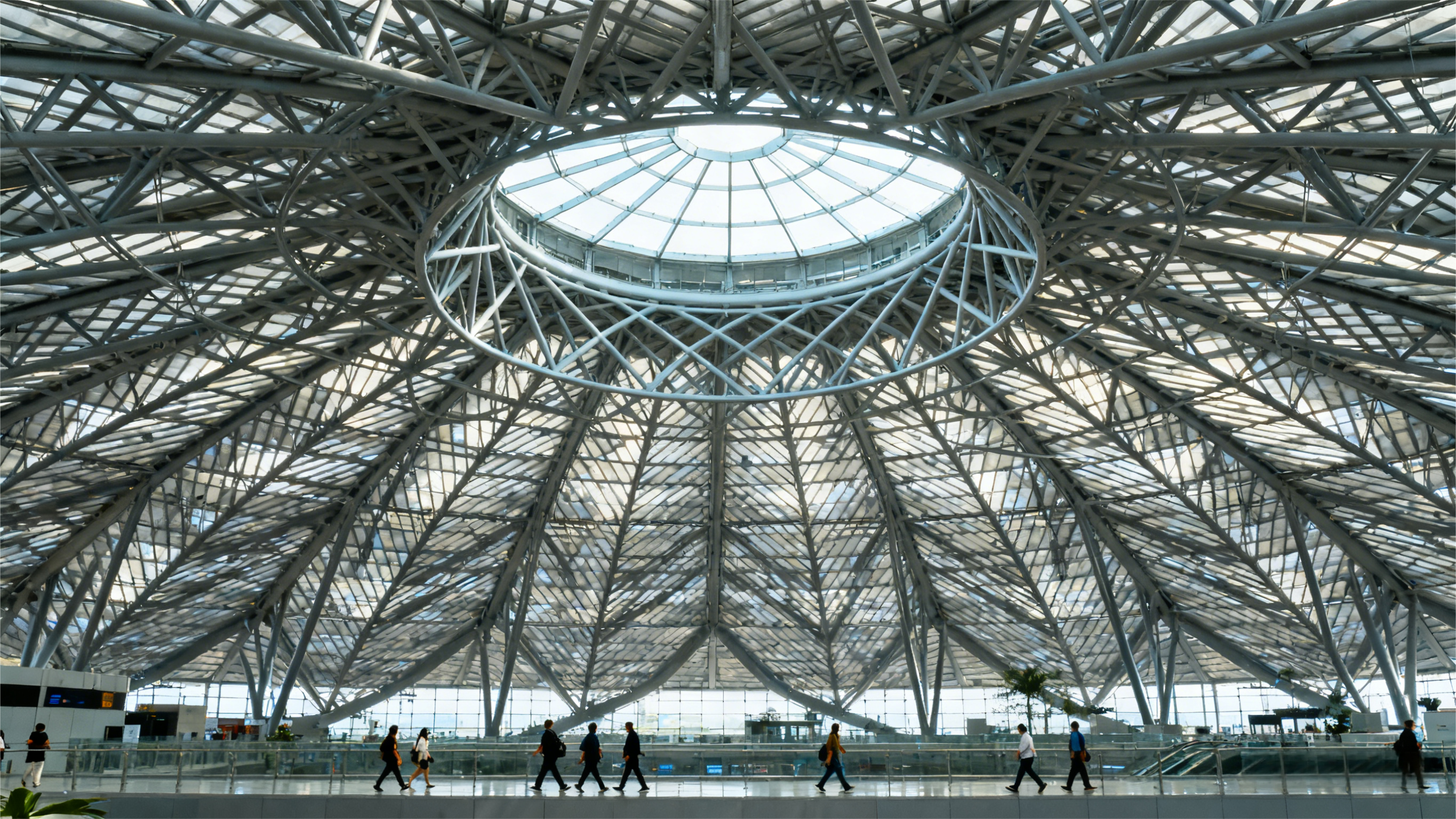

The steel structure airport terminal building products of Shandong Guoshun Construction Group Co., Ltd. are made of Q355GJC high-strength steel. The main structure consists of bidirectional orthogonal space trusses (with a standard node bearing capacity of 12000kN), V-shaped support columns (with a 40% increase in lateral stiffness), and a cable membrane composite roof system, achieving a super large column free space span of 120 meters. All steel components are prefabricated in the factory with an accuracy of ± 1.5mm and have passed ISO3834 welding system certification. High strength bolts (grade 10.9) are used on site in conjunction with total station positioning (error ≤ 2mm). Thick fireproof coating (3-hour fire resistance limit) is used in combination with a spray cooling system for fire prevention. The roof integrates photovoltaic power generation units (annual power generation of 1.5 million degrees) and snow melting heat pipes. The curtain wall system is pre installed with more than 2000 strain gauges. Sensors achieve health monitoring, with overall steel consumption controlled below 95kg/㎡ and seismic performance meeting 0.4g The seismic motion requirements have been successfully applied to a 4F level airport project and have passed wind tunnel testing (wind pressure resistance of 5.5kN/㎡), obtaining dual certifications of LEED Platinum and GB/T50378 Green Building Three Star. We provide full cycle services from structural calculations (meeting IBC/EN/AISC multi country standards), processing drawings to intelligent operation and maintenance systems.

Guoshun Group will continue to be committed to maintaining the development concept of satisfying customers, providing high-quality steel structure production and manufacturing services to thousands of high-quality customers at home and abroad, and jointly creating an innovative and updated beautiful tomorrow!


Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Product Overview

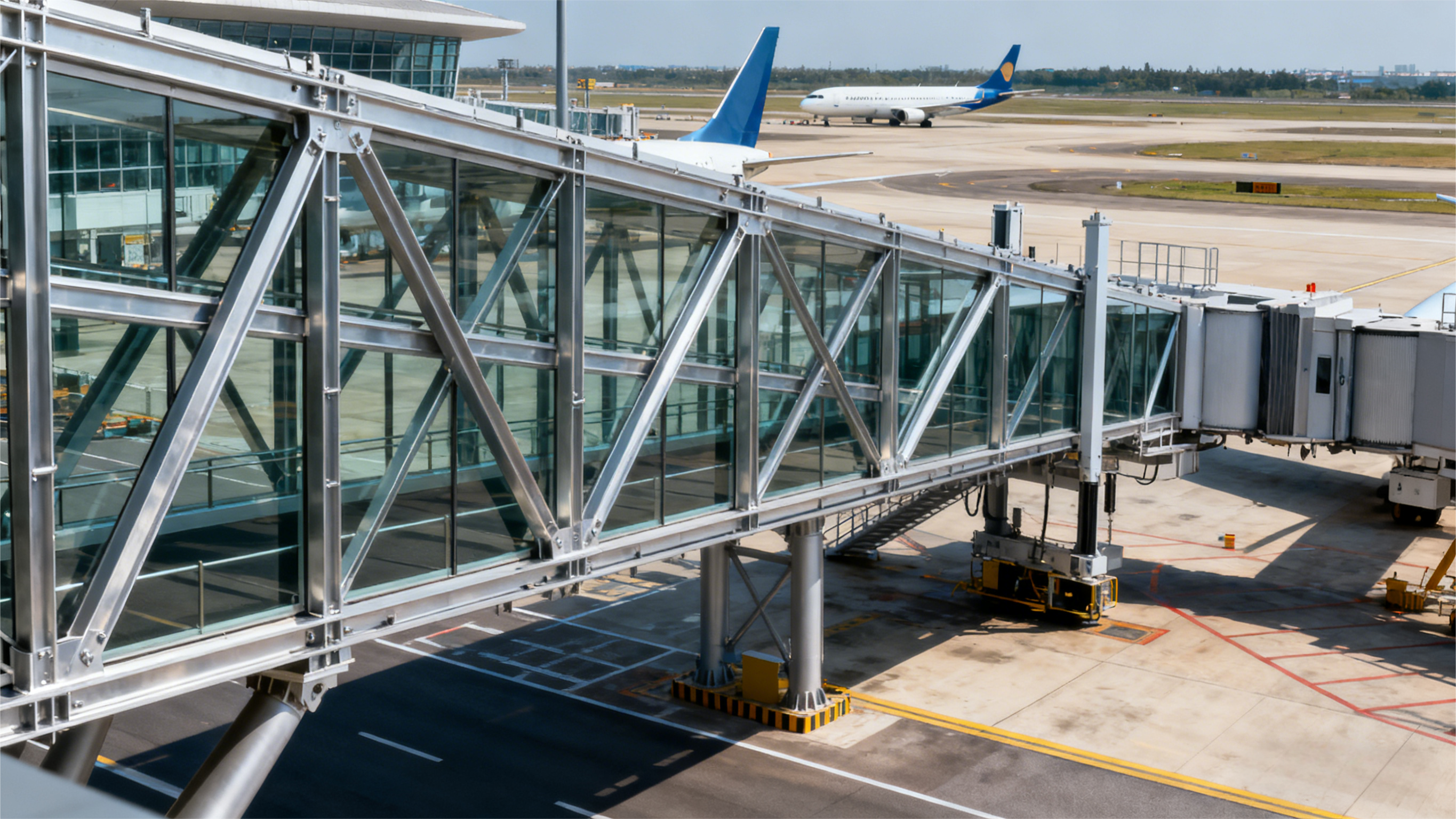

A Steel Structure Airport is a long-span, high-strength, and modular structural solution specially designed for airport terminals, hangars, departure halls, cargo centers, air traffic control facilities, and airport support buildings.

Using high-grade steel such as Q355, Q460, S355, S460, ASTM A572, airport steel structures deliver outstanding load-bearing performance, architectural flexibility, and extremely fast construction speed.

With fully prefabricated components and advanced engineering design, steel structure airports meet the growing demand for large space, high passenger flow, ultra-long spans, and durable infrastructure.

Key Advantages


Application Fields

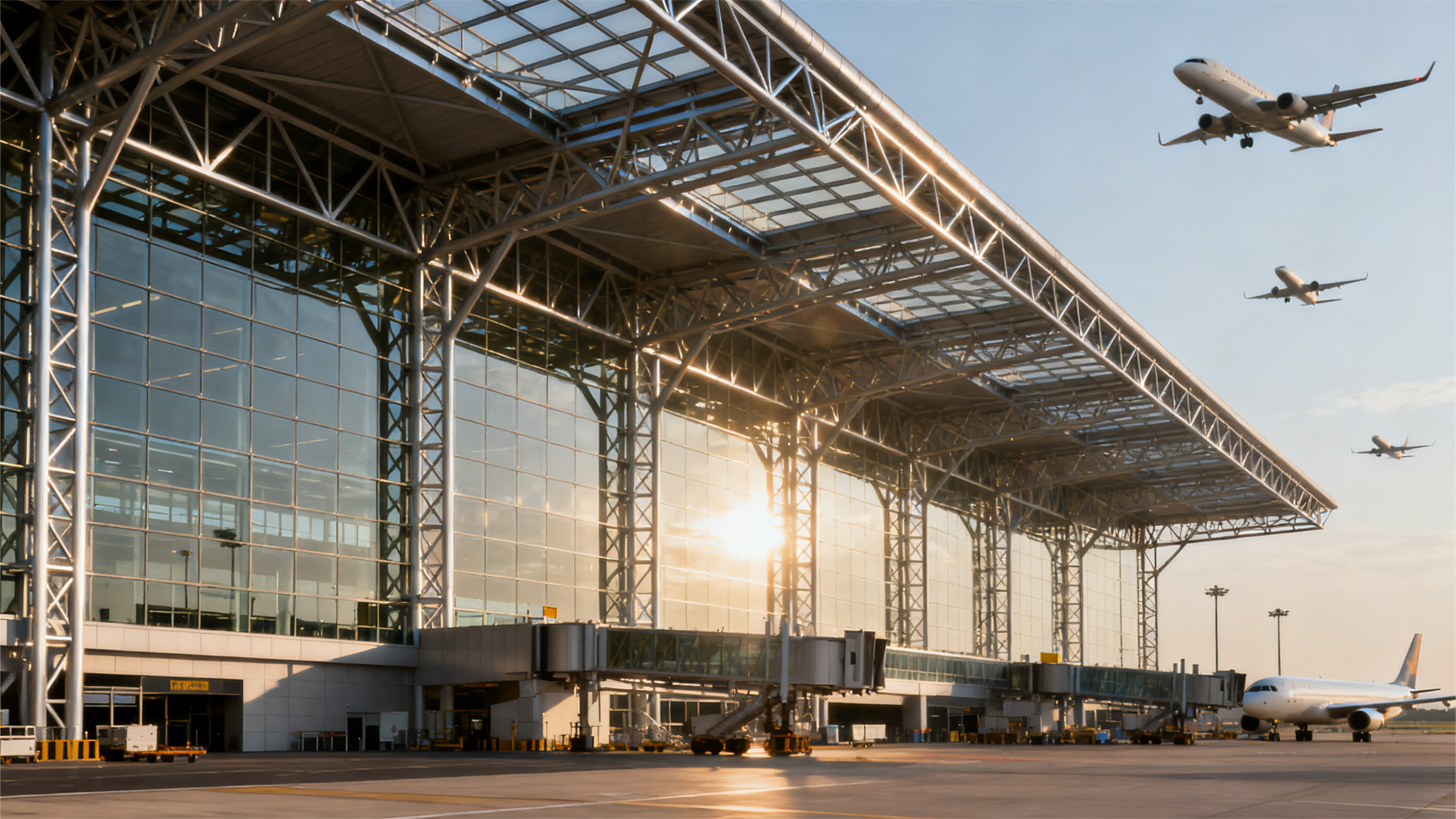

Airport terminal buildings

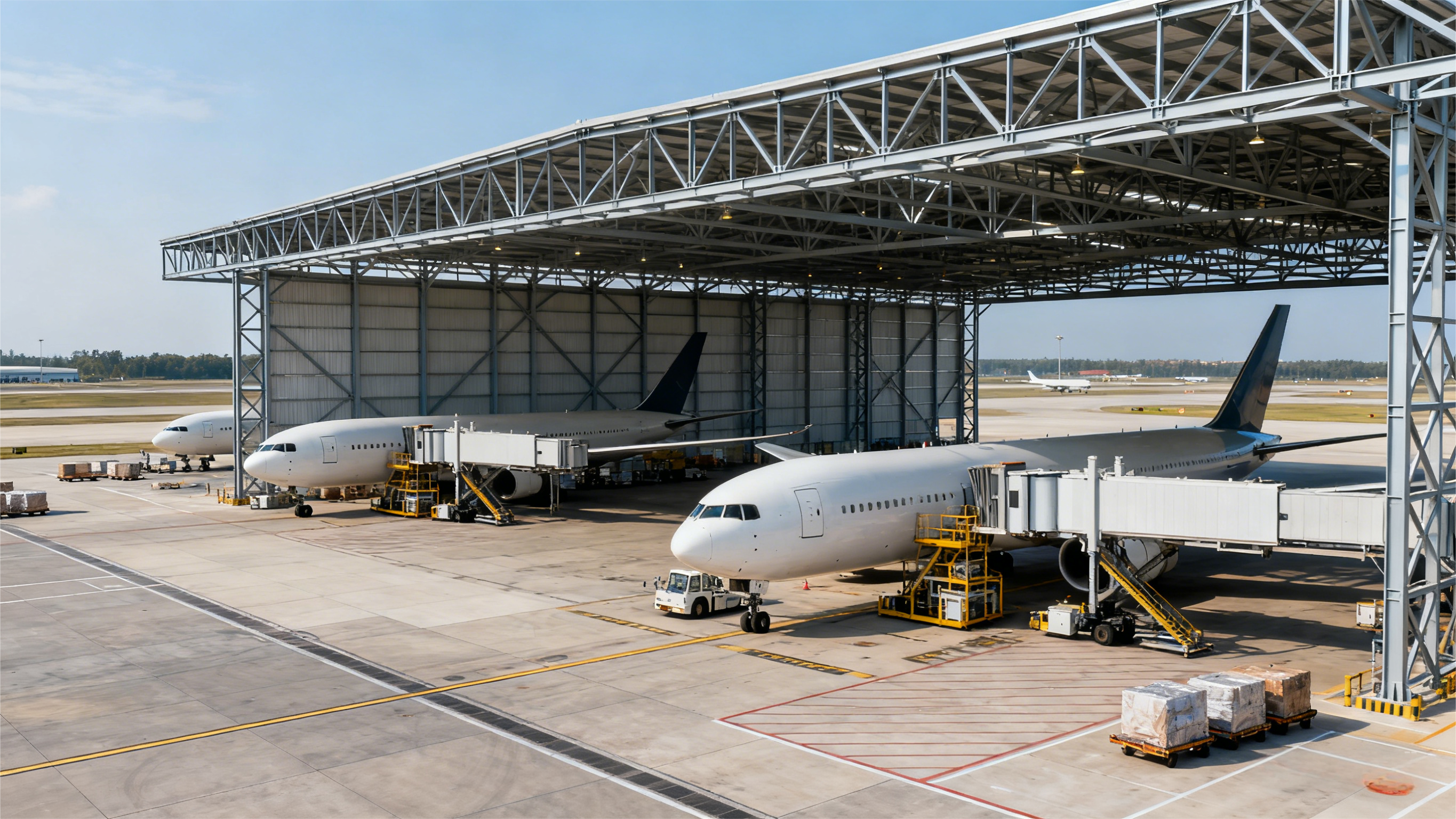

Aircraft hangars
Cargo facilities
Airport logistics warehouses
Maintenance buildings (MRO)
Service & emergency response buildings
ATC support facilities
Passenger and baggage handling spaces

Why Choose Us

20+ years of steel structure manufacturing experience
CE, EN1090, ISO 3834, ASME certified
Advanced CNC and robotic welding lines
High capability in producing large-span and curved steel structures
Engineering team with global airport project experience
Fast delivery and professional onsite installation guidance



Our Factory

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
