Cable-stayed bridge
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- Overview
- Recommended Products
Description

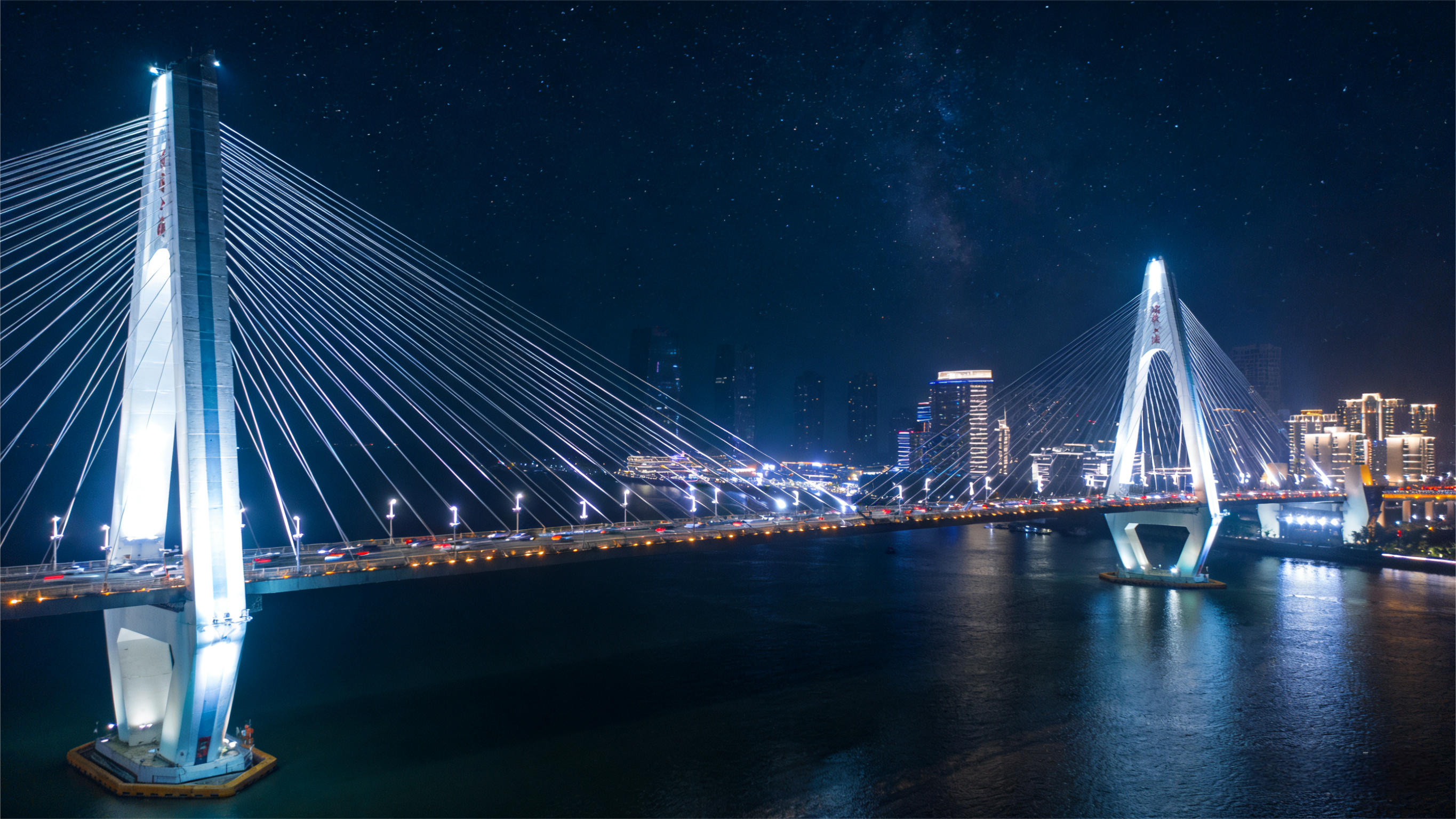

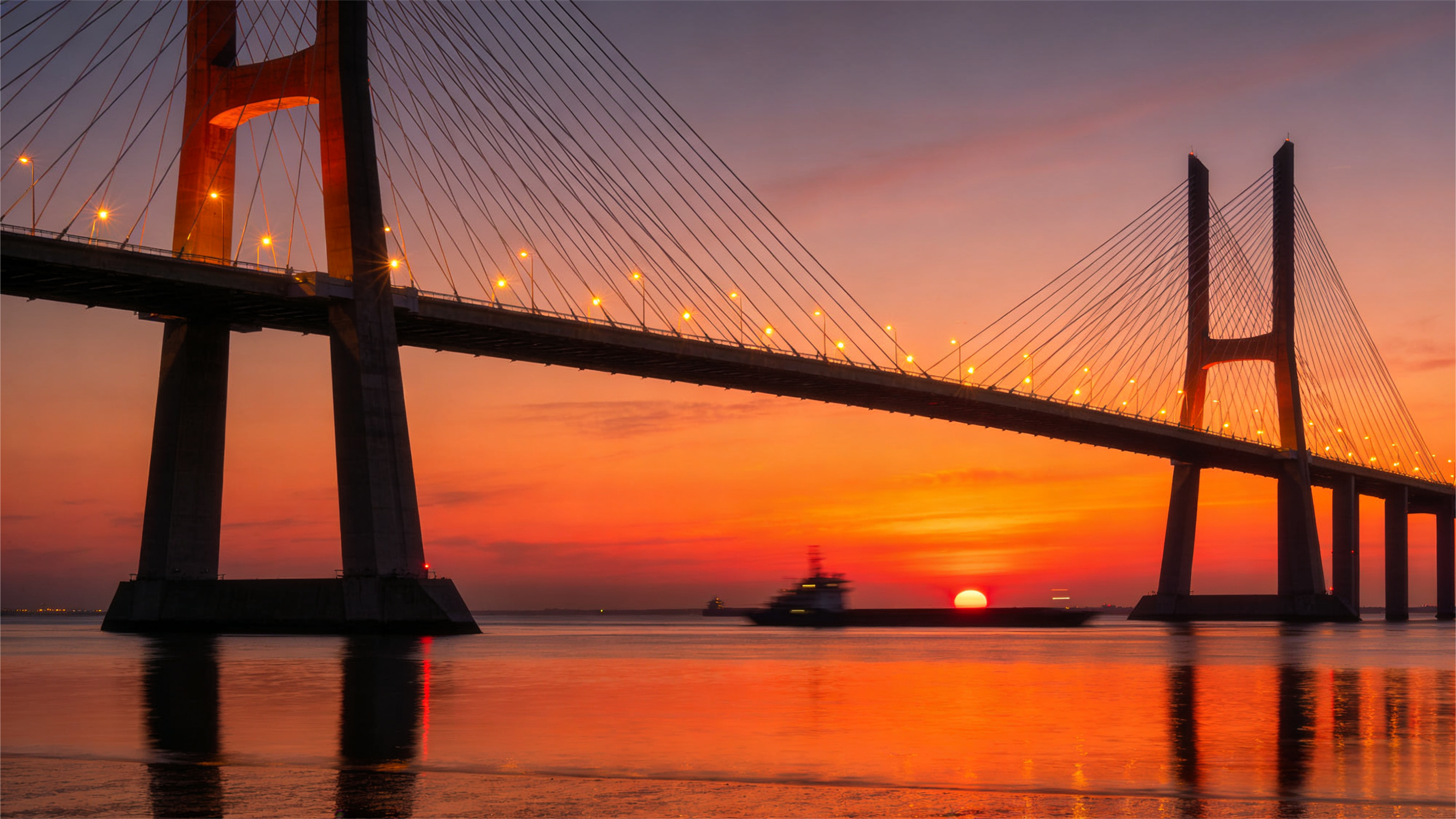

A Cable-Stayed Bridge is a modern long-span bridge structure in which the bridge deck is directly supported by stay cables connected to one or more towers (pylons). Compared with suspension bridges, cable-stayed bridges feature stronger structural stiffness, lower construction cost, and easier maintenance, making them widely used in highways, urban expressways, rail transit systems, river crossings, and landmark infrastructure projects.
Our cable-stayed bridges are fabricated using high-strength structural steel such as Q355, Q460, S355, ASTM A572, combined with high-tensile steel stay cables, delivering excellent load capacity, wind resistance, and long-term durability under complex environmental conditions.
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Key Advantages
① Long-Span Capability with High Stiffness
Suitable for spans of 200–1200+ meters
High torsional and bending stiffness
Excellent resistance to deformation under traffic loads
② Outstanding Wind & Seismic Resistance
Aerodynamic deck design reduces wind-induced vibration
Optimized cable arrangement improves overall stability
Designed to meet high seismic zone requirements
③ High Load-Bearing Performance
Supports heavy highway traffic and urban rail systems
Suitable for mixed traffic (vehicles + pedestrians)
Meets international bridge load standards
④ Lower Construction Cost Compared with Suspension Bridges
Fewer cables and simpler anchoring system
No massive anchor blocks required
Lower overall foundation and construction cost
⑤ Iconic and Modern Architectural Appearance
Elegant tower shapes and cable layouts (fan type, harp type, radial type)
Enhances city skyline and regional image
Fully customizable appearance design
Structural System & Manufacturing Process
Main Structural Components
Steel or composite pylons (towers)
Steel box girder or steel truss deck
High-strength stay cables
Cable anchor systems
Bearings and expansion joints
Manufacturing Process
3D structural modeling & stress analysis
Wind resistance and dynamic response simulation
CNC cutting, robotic welding, submerged arc welding (SAW)
Non-destructive testing: UT, RT, MT, PT
Factory trial assembly before shipment
Technical Specifications
| Item | Specification |
| Bridge Type | Highway / Urban Expressway / Railway / Pedestrian |
| Main Span | 200 – 1200+ m |
| Deck Width | 8 – 40+ m |
| Design Load | Highway Class I / Urban Rail Standard |
| Wind Resistance | ≥ 60–70 m/s |
| Seismic Resistance | Grade 7–9 |
| Material | Q355/Q460, S355, ASTM A572 |
| Cable Material | High-Tensile Steel Strands |
| Corrosion Protection | HDG + Marine-Grade Coating |
| Design Life | 100 years |
| Standards | EN, ASTM, AASHTO, GB |
Typical Applications
Highway river-crossing bridges
Urban expressway bridges
Rail transit cable-stayed bridges
Sea-crossing medium-span bridges
Landmark city bridges
Pedestrian & sightseeing bridges
Why Choose Us
20+ years of steel bridge engineering and fabrication experience
CE EN1090 & ISO 3834 certified manufacturing base
Advanced bridge design optimization and simulation capability
Full service from design – fabrication – delivery – installation guidance
Rich export experience in Asia, Middle East, Africa, and Europe
Stable quality, competitive pricing, and reliable delivery
Our Factory

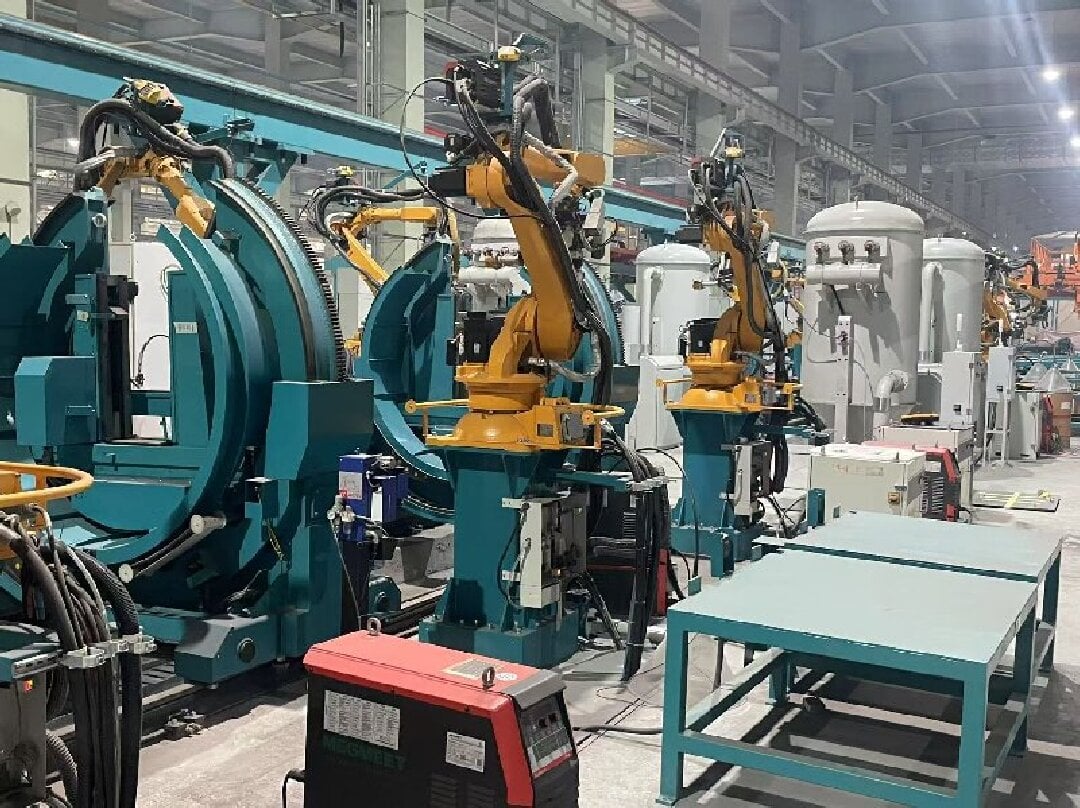

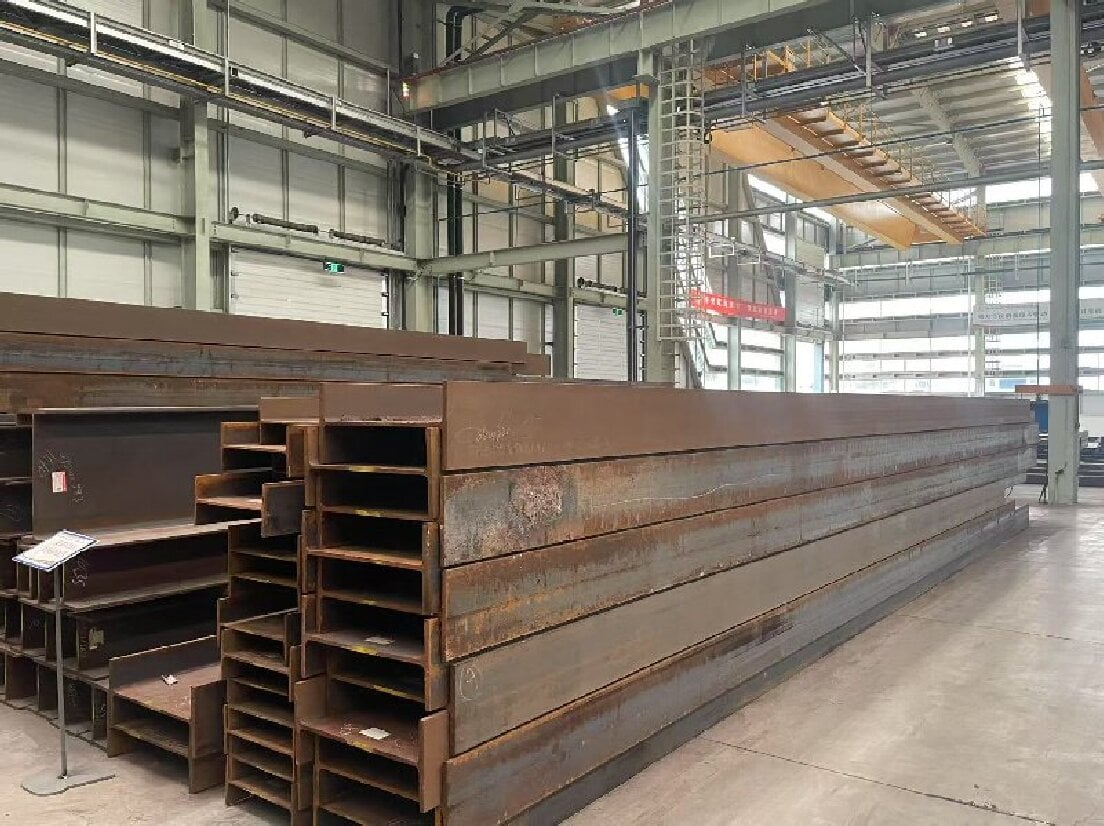

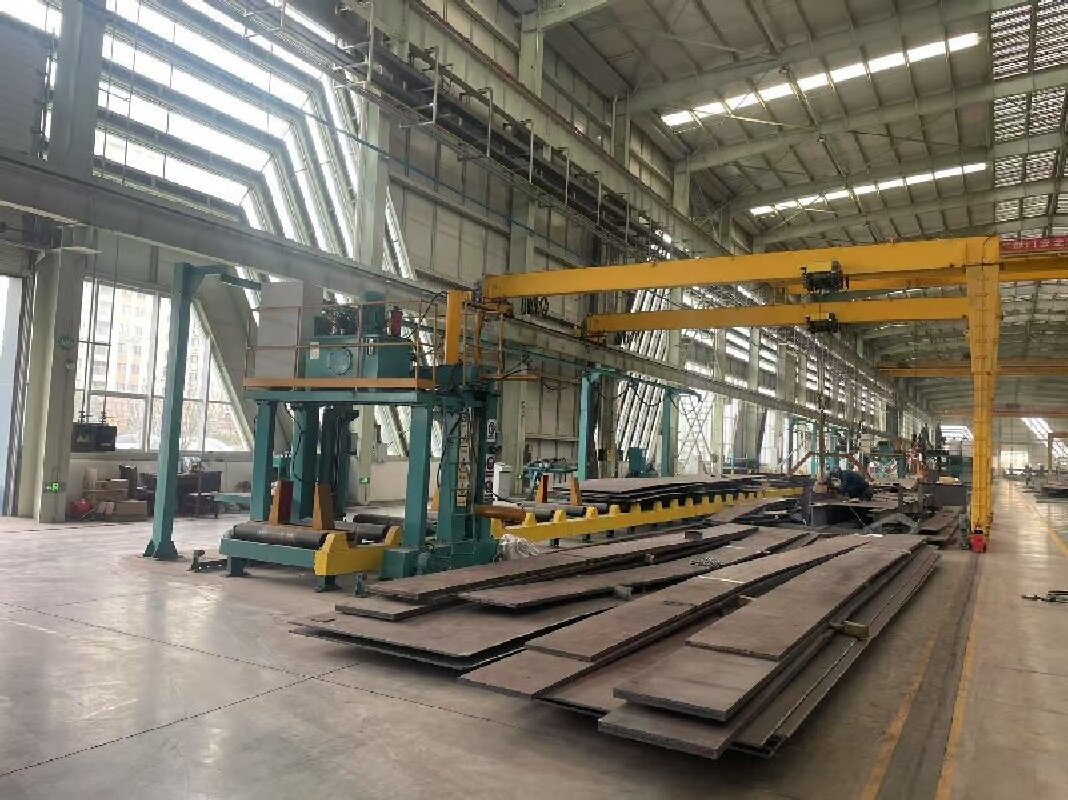

Raw material storageMaterial cuttingAutomatic Welding

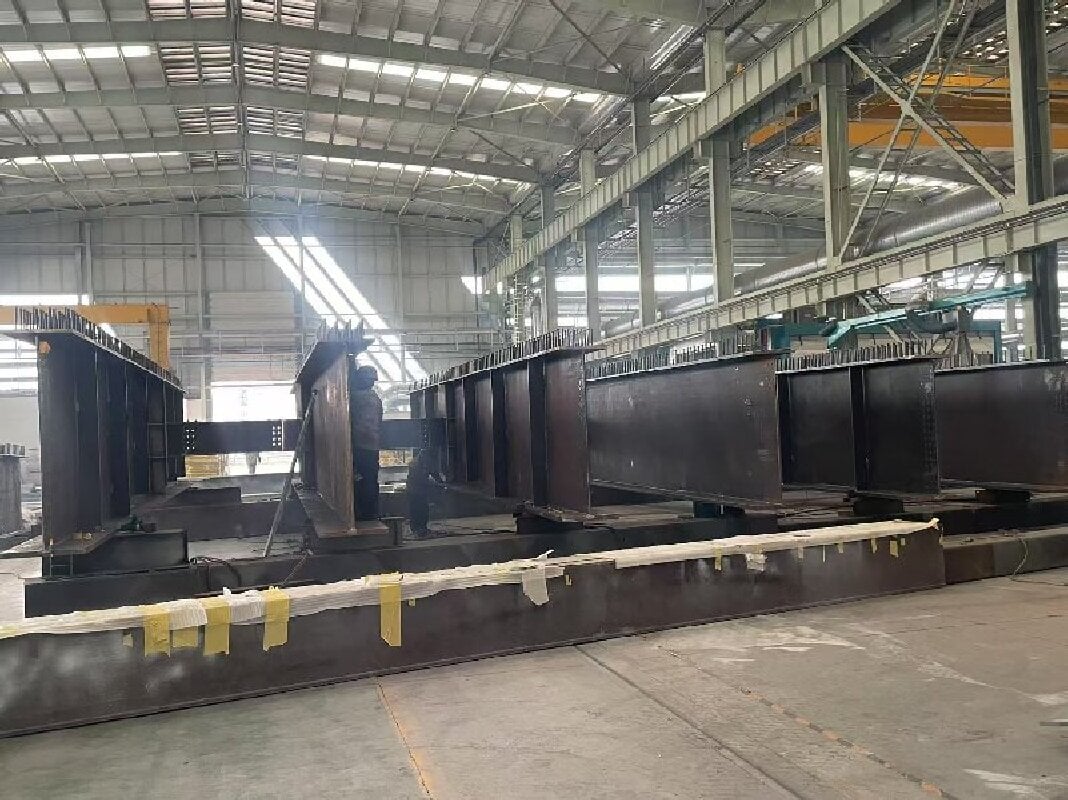

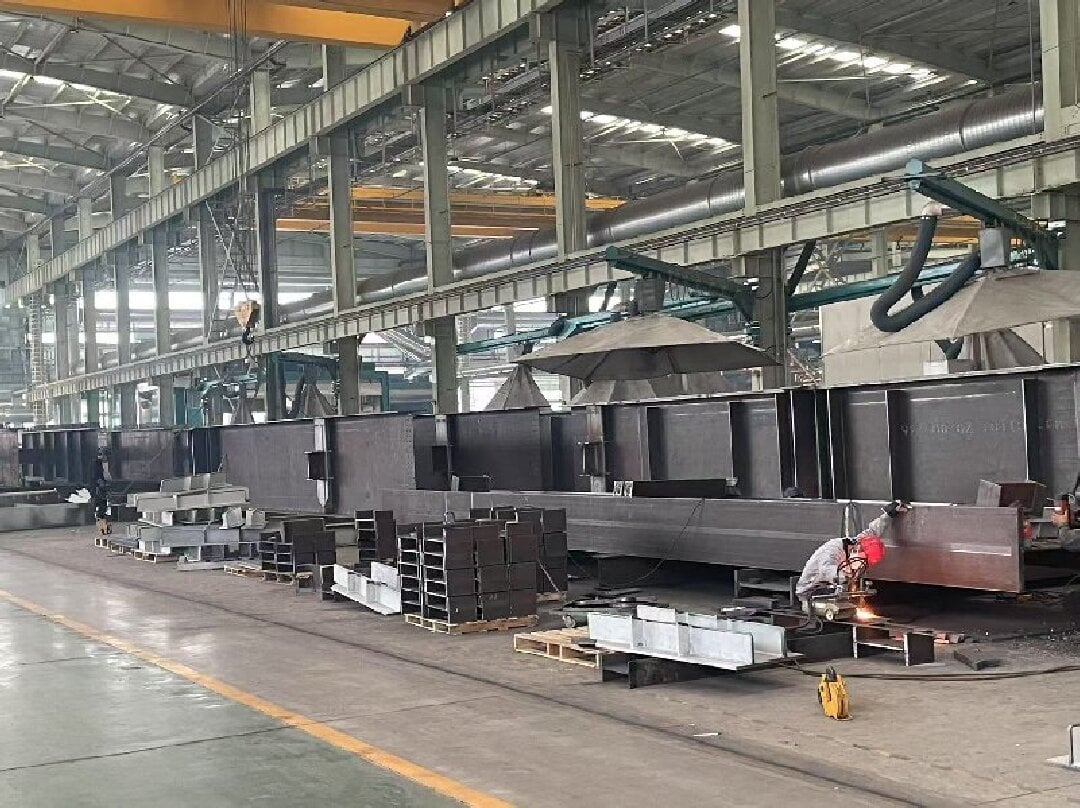

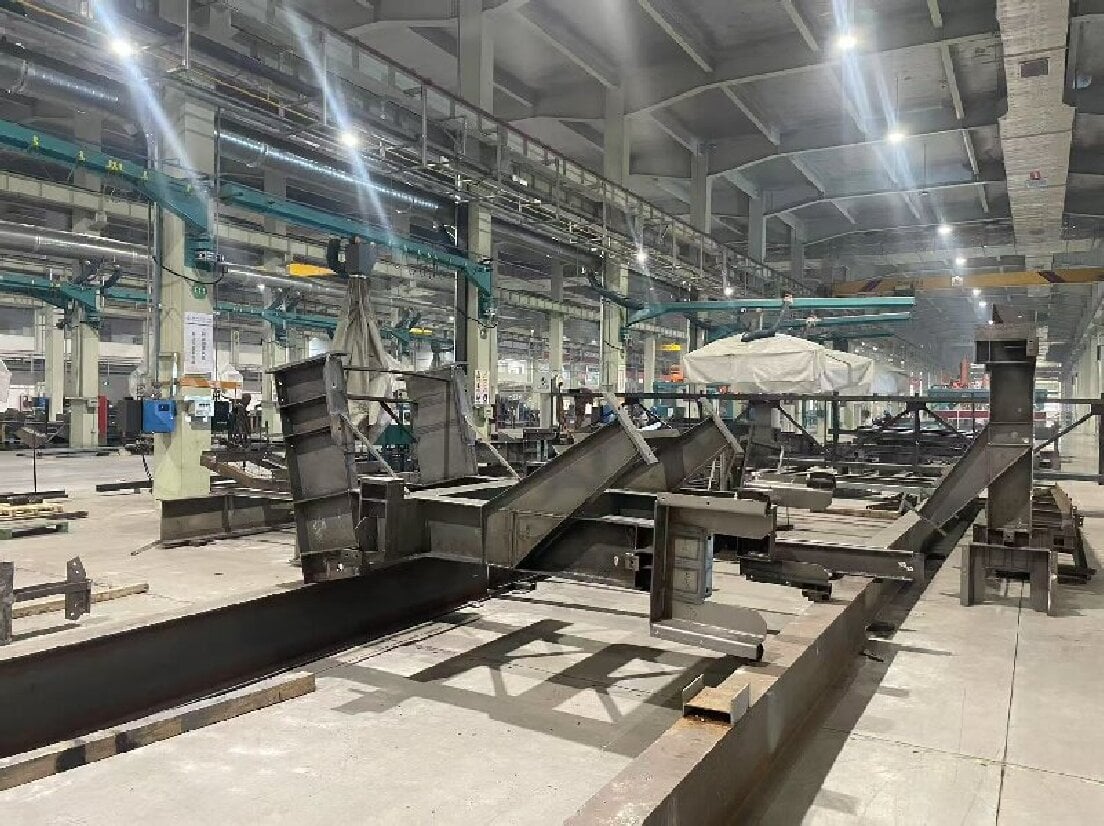

Manual weldingWeld seam treatmentDeep processing

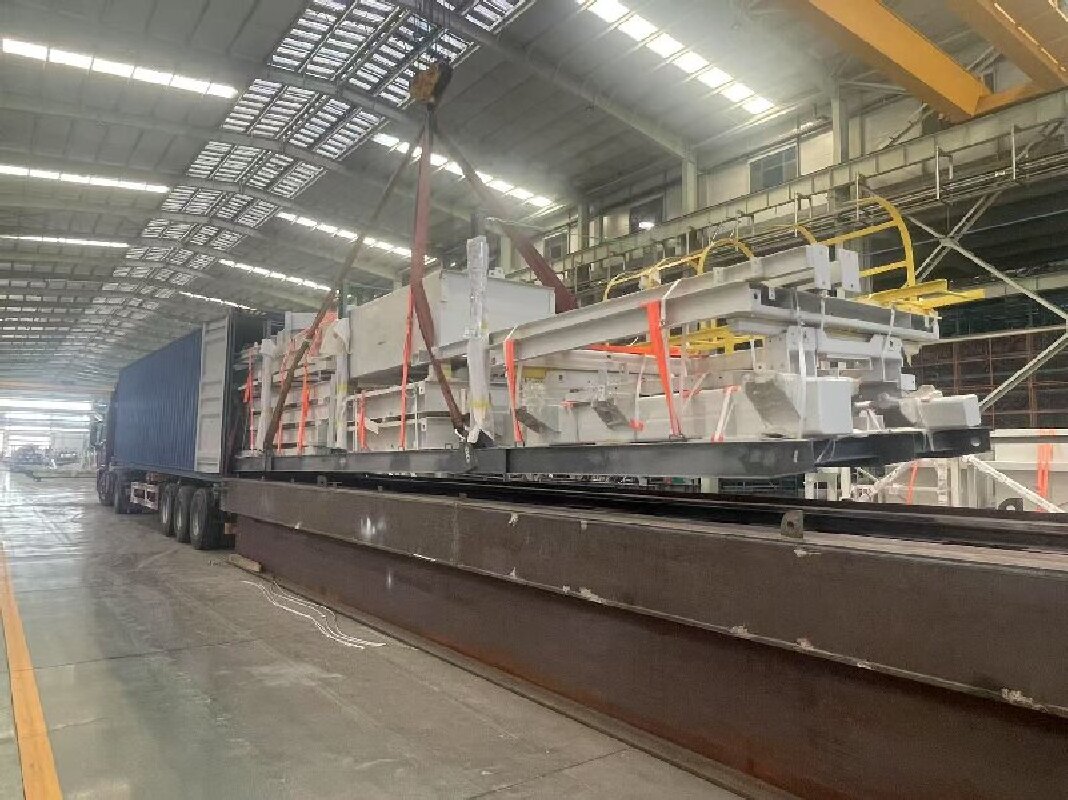

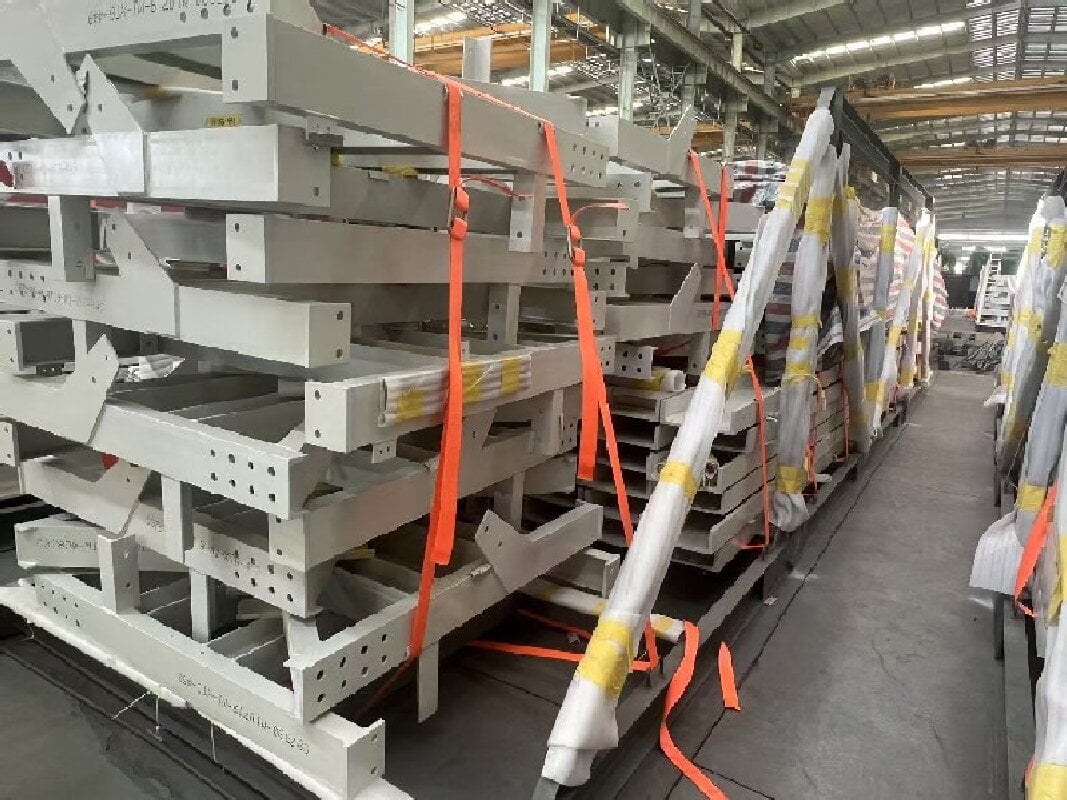

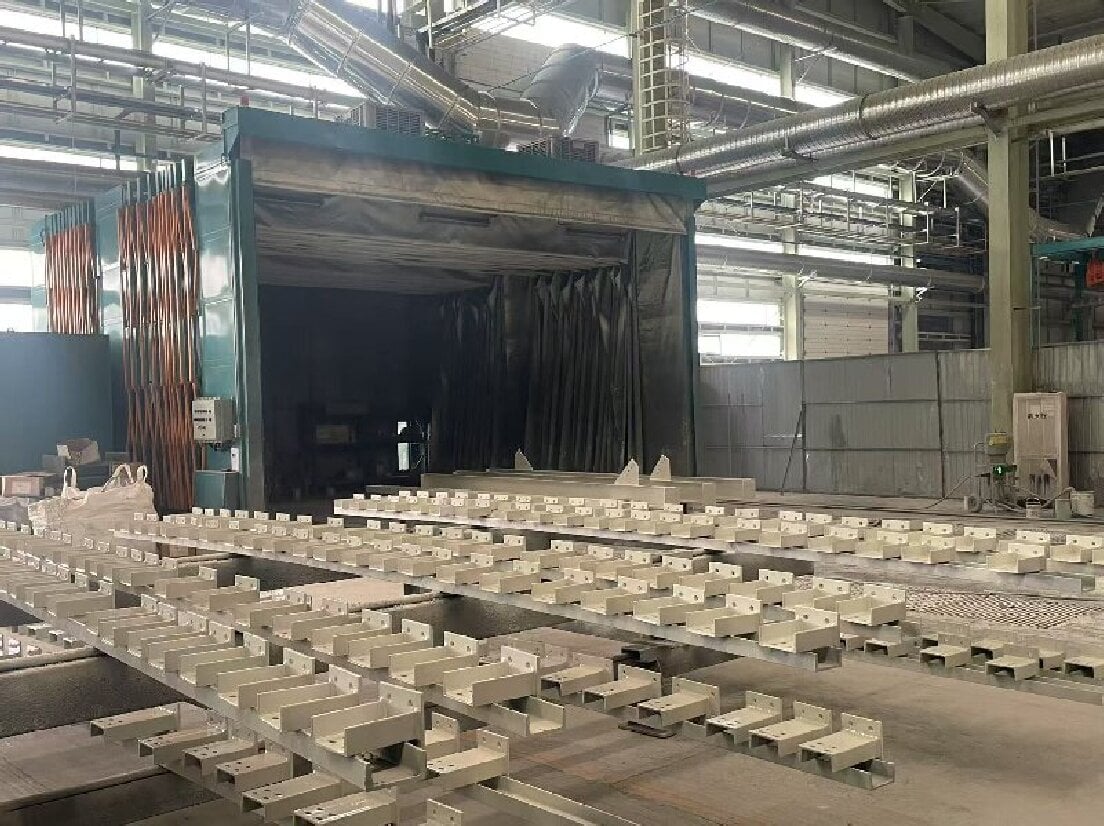

PaintingDeliveryPackaging
