Pipe Truss Structure

Product Overview

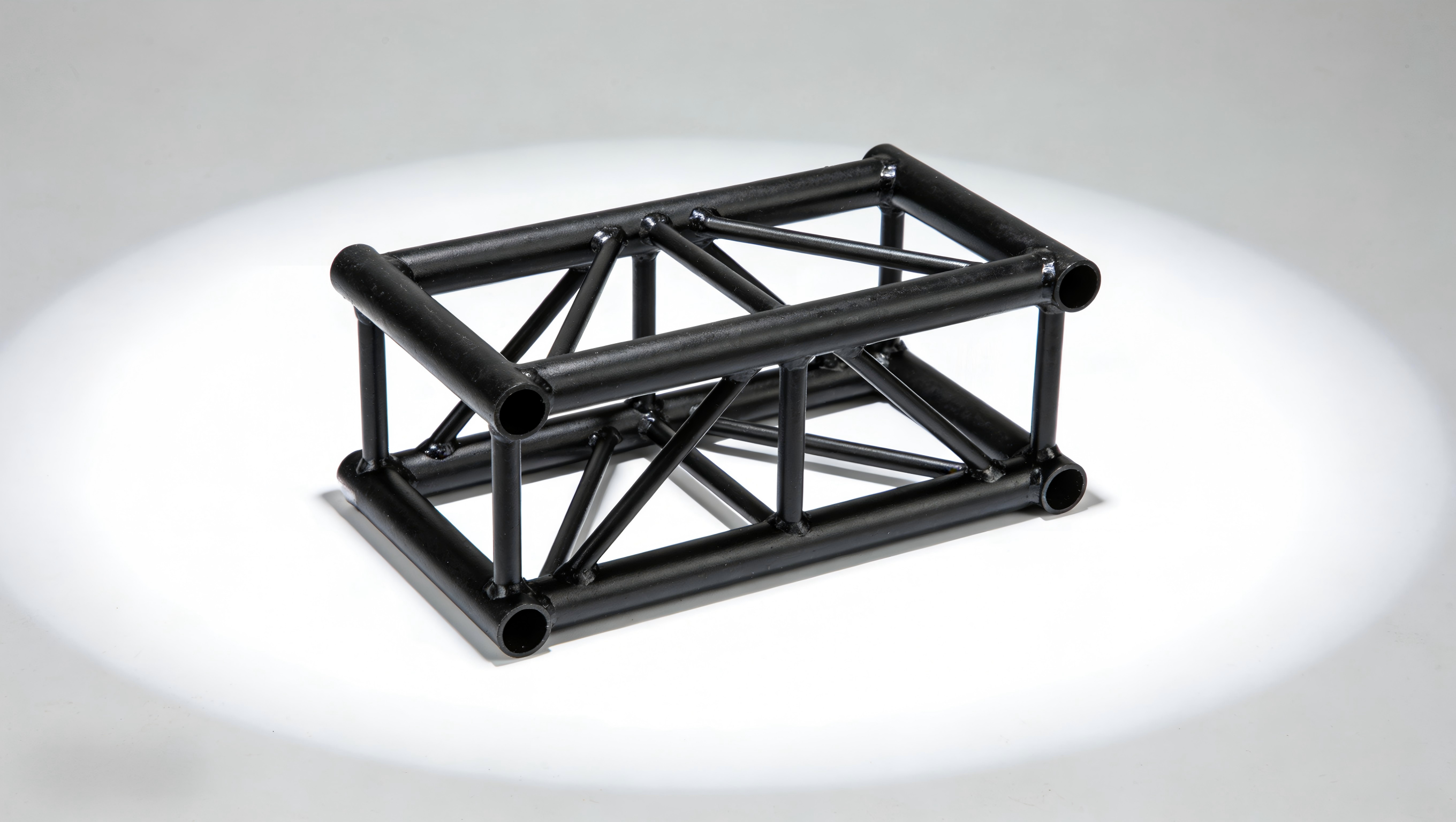

The Pipe Truss Structure is a steel truss system composed of circular or square steel pipe members connected at nodes to form a stable and efficient load-bearing structure. Compared with traditional angle or H-section trusses, pipe truss structures offer higher strength-to-weight ratio, excellent stability, and superior aesthetic appearance, making them ideal for modern architectural and industrial applications.

Pipe truss structures are widely used in:
Large-span roofs and canopies
Stadiums and gymnasiums
Exhibition halls and terminals
Industrial workshops and warehouses
Conveyor galleries and pipe racks
Bridges and special-shaped structures


Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

High Structural Efficiency
Tubular members provide uniform stress distribution and high load capacity.

Large-Span Capability
Suitable for long-span structures with minimal intermediate supports.

Lightweight & Material Saving
Reduced self-weight compared with solid-section trusses.

Excellent Aesthetic Appearance
Smooth tubular profiles create clean and modern architectural lines.

Strong Torsional & Buckling Resistance
Closed sections improve overall stability.

Prefabricated & Fast Installation
Factory fabrication ensures precision and rapid on-site assembly.

Durable & Long Service Life
Anti-corrosion treatments enhance durability.

Technical Features & Production Process

1 Technical Features
High-strength steel pipes: circular, square, or rectangular tubes
Steel grades: Q235B / Q355B / Q420 or equivalent ASTM / EN grades
Truss forms: Warren, Pratt, K-type, V-type, and custom designs
Welded or bolted tubular joints
Optional node stiffeners and gusset plates
Suitable for roof, bridge, and industrial support systems
Designed in accordance with international structural standards

2 Production Process
Structural analysis and pipe truss design
Shop drawing preparation and approval
CNC pipe cutting, profiling, and drilling
Node fabrication and assembly
Automatic or manual welding
Non-destructive testing (UT / MT)
Dimensional inspection and trial assembly
Surface treatment (sandblasting, painting, galvanizing)
Packing, transportation, and site installation

Technical Specifications (Customizable)

Application Scenarios

Large-Span Roof Structures
Stadiums & Sports Facilities
Exhibition & Convention Centers
Industrial Buildings & Pipe Racks
Conveyor Systems & Galleries
Steel Bridges & Special-Shaped Structures

Why Choose Us

Professional Pipe Truss Manufacturer
Extensive experience in tubular truss design and fabrication.

Advanced Fabrication Equipment
CNC pipe cutting, profiling, and automatic welding lines.

Strict Quality Control System
Material traceability, certified welders, and full NDT inspection.

Customized Engineering Solutions
Structural optimization for safety, efficiency, and cost control.

Rich Global Project Experience
Pipe truss structures supplied to architectural and industrial projects worldwide.

Reliable Delivery & Competitive Pricing
Factory-direct manufacturing ensures stable quality and timely delivery.


Our Factory

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
