Steel Lattice Column

Product Overview

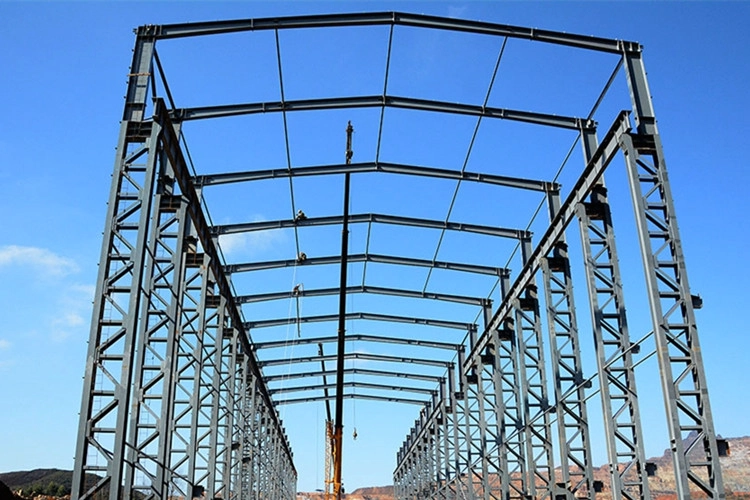

The Steel Lattice Column is a vertical load-bearing structural member composed of multiple steel sections connected by bracing to form an open lattice framework. Compared with solid or box columns, lattice columns provide high load capacity with reduced self-weight, making them suitable for tall, heavy-load, and large-span steel structures.

Steel lattice columns are widely used in:
Industrial plants and heavy steel structures
Power transmission towers and substations
Steel structure buildings with high columns
Pipe racks and equipment support systems
Bridges and infrastructure projects

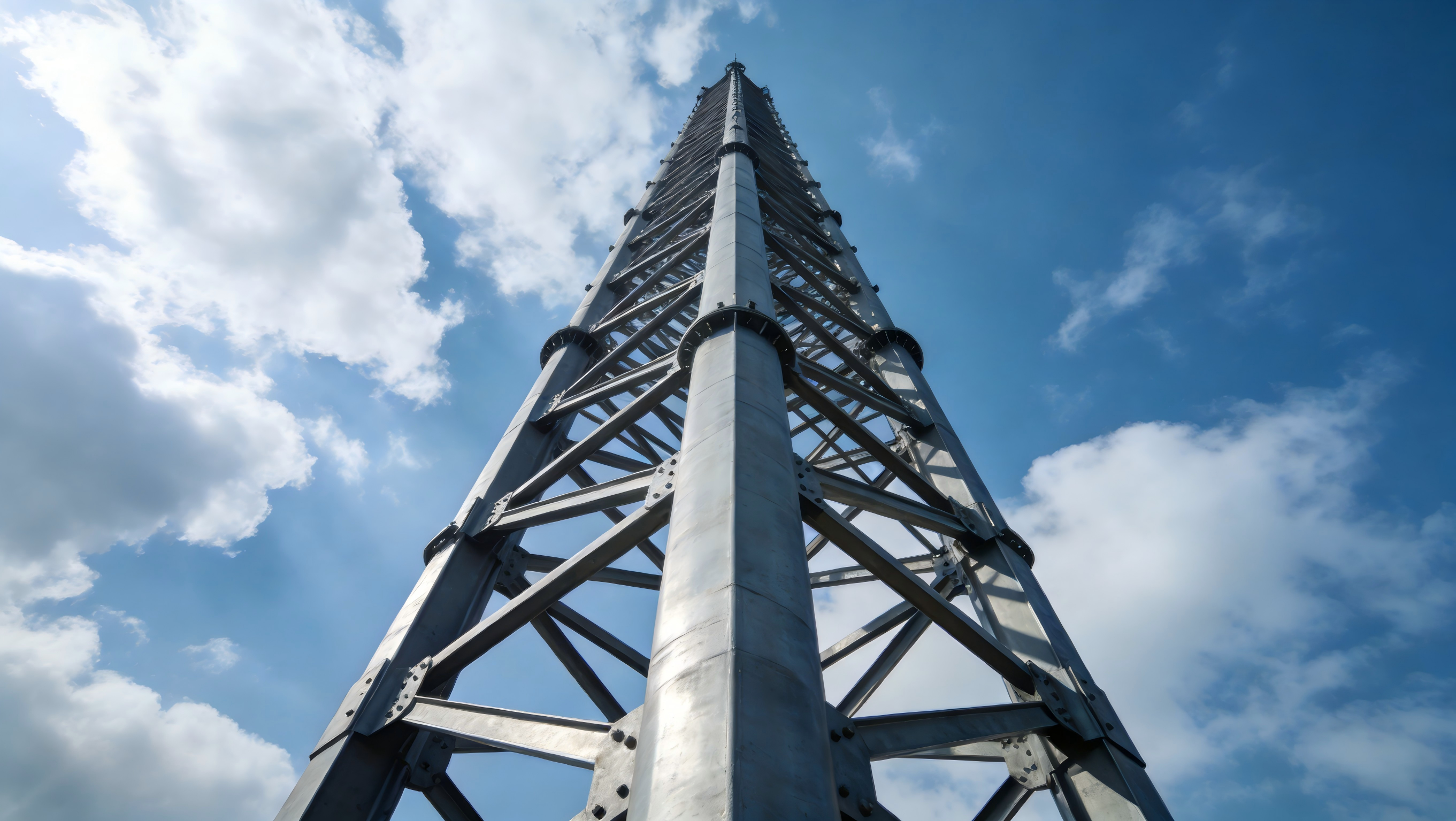

Towers, chimneys, and special structures


Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

High Load-Bearing Capacity
Efficiently resists axial compression and buckling.

Lightweight Structure
Open lattice design reduces steel consumption and dead load.

Excellent Stability
Bracing system improves overall stiffness and buckling resistance.

Cost-Effective Solution
Optimized material usage lowers fabrication and foundation costs.

Good Ventilation & Inspection Access
Open structure allows easy inspection and maintenance.

Prefabricated & Fast Installation
Modular fabrication enables quick on-site assembly.

Durable & Long Service Life
Anti-corrosion treatments ensure long-term performance.

Technical Features & Production Process

1 Technical Features
Main members: angle steel, H-section, or steel pipe
Bracing members: angle steel or flat bar
Common forms: single-limb, double-limb, or multi-limb lattice column
Bolted or welded connections
Excellent resistance to buckling and compression
Fireproof and corrosion protection systems available
Designed according to international structural standards

2 Production Process
Structural analysis and lattice column design
Shop drawing preparation and approval
Steel cutting, drilling, and component fabrication
Assembly and welding or bolting
Non-destructive testing (UT / MT, if required)
Dimensional inspection and trial assembly
Surface treatment (sandblasting, painting, galvanizing)
Packing, transportation, and site installation

Technical Specifications (Customizable)

Application Scenarios

Industrial Plants & Heavy Steel Structures
Power Transmission & Substation Structures
Pipe Racks & Equipment Support Columns
High-Column Steel Buildings
Bridges & Infrastructure Projects
Towers, Chimneys & Special Structures

Why Choose Us

Professional Lattice Column Manufacturer
Extensive experience in lattice column design and fabrication.

Advanced Fabrication Facilities
CNC cutting, precision drilling, and automated welding.

Strict Quality Control System
Material traceability, dimensional checks, and inspection records.

Customized Engineering Solutions
Structural optimization for strength, stability, and cost efficiency.

Rich Project Experience
Steel lattice columns supplied to industrial and infrastructure projects worldwide.

Reliable Delivery & Competitive Pricing
Factory-direct production ensures consistent quality and timely delivery.


Our Factory

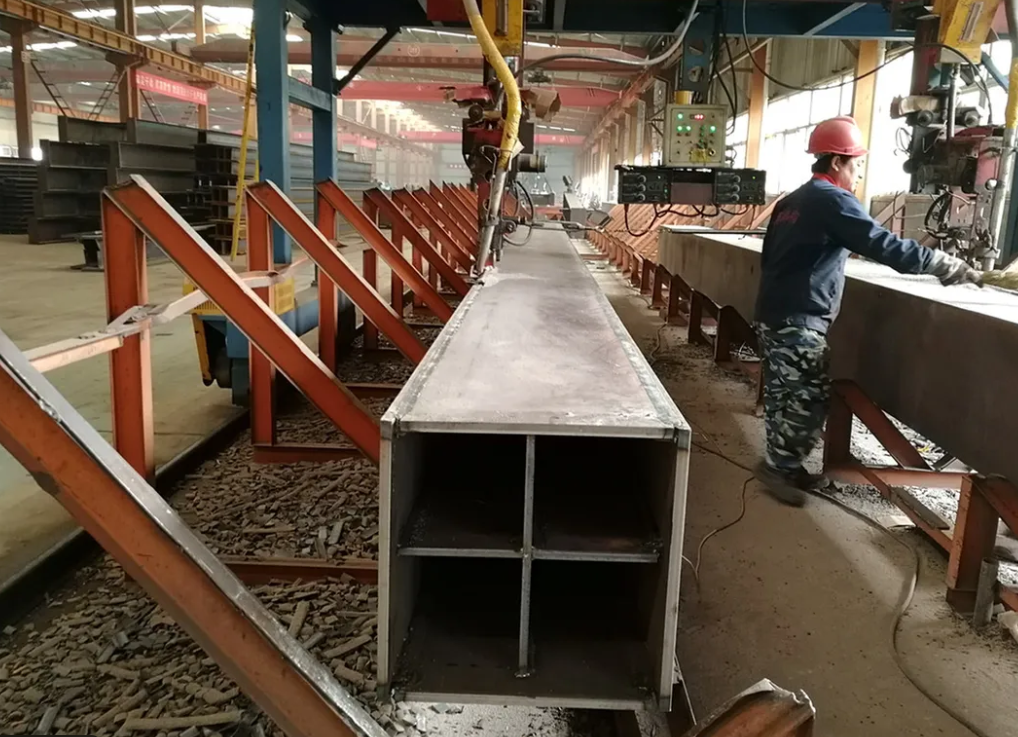

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
