Truss Steel Bridge

Product Overview

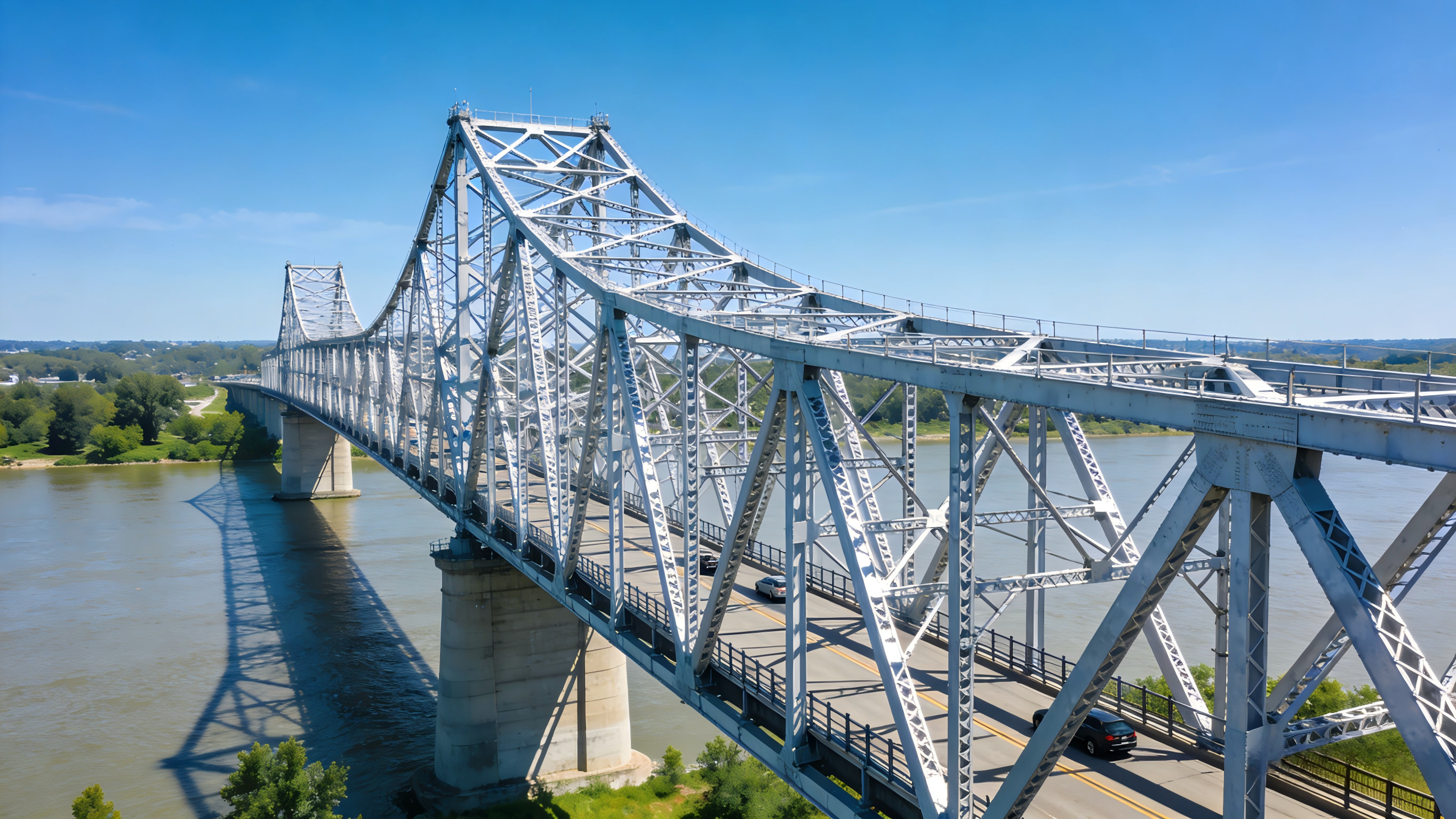

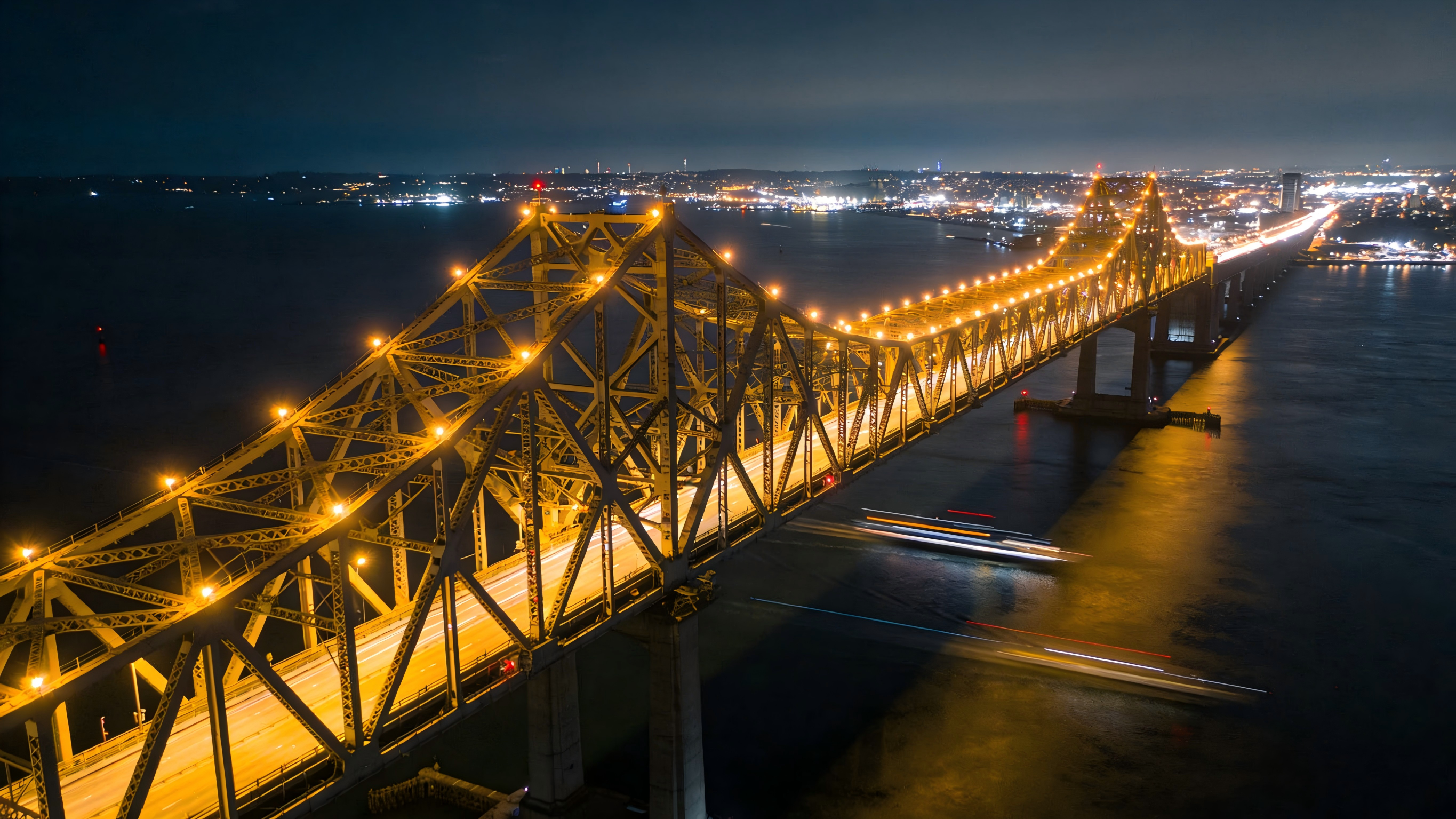

The Truss Steel Bridge is a classic and highly efficient bridge structure composed of interconnected steel members forming triangular units. This structural form provides excellent strength, stability, and load distribution, making it ideal for medium to long spans under heavy traffic or complex site conditions.

Truss steel bridges are widely used for:
Highway and roadway bridges
Railway bridges
Pedestrian and bicycle bridges
Industrial and mining transport bridges
Temporary and emergency bridges

Common truss types include:
Through Truss Bridge
Deck Truss Bridge
Half-Through (Pony) Truss Bridge
Warren Truss / Pratt Truss / Howe Truss


Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

High Load-Bearing Efficiency
Triangular truss system effectively transfers loads, suitable for heavy vehicles and trains.

Long-Span Capability
Ideal for spans typically ranging from 20 m to 150 m or more.

Excellent Structural Stability
Strong resistance to bending, vibration, wind, and seismic forces.

Lightweight Compared to Concrete Bridges
Reduces foundation loads and construction costs.

Fast Fabrication & Installation
Prefabricated steel members enable rapid erection on site.

Durable & Long Service Life
Advanced corrosion protection ensures a design life of 50–100 years.

Easy Inspection & Maintenance
Open structure allows convenient access for inspection and repair.

Technical Features & Production Process

Technical Features
High-strength structural steel: Q355 / Q420 / Q460, S355 / S460, ASTM A572 Gr.50/70
Optimized truss geometry (Warren, Pratt, Howe) based on load requirements
Bolted and welded hybrid connections for strength and ease of installation
Fatigue-resistant design suitable for dynamic loads
Multiple corrosion protection options:
  Hot-dip galvanizing
  Zinc-rich epoxy primer + polyurethane topcoat
  Weathering steel (Corten steel)
Integrated bridge deck systems (steel deck or composite concrete deck)
Optional walkways, handrails, guardrails, and lighting systems

Production Process
Bridge layout design & structural analysis
Steel material inspection and certification
CNC cutting and drilling
Truss member fabrication and automatic welding
Non-destructive testing (UT / MT / RT)
Surface preparation (sandblasting)
Anti-corrosion coating or galvanizing
Pre-assembly and dimensional inspection
Packing, transportation, and on-site erection

Technical Specifications



Highway & Road Bridges
Railway & Metro Truss Bridges
River-Crossing Bridges
Mountain & Valley Bridges
Pedestrian & Bicycle Bridges
Industrial & Mining Transport Bridges
Temporary or Emergency Bridges

Why Choose Us

Professional Bridge Engineering Team
Experienced in truss bridge design under AASHTO, Eurocode, BS, and Chinese standards.

Advanced Fabrication Facilities
CNC cutting, robotic welding, and full NDT inspection capability.

Strict Quality Control System
Complete material traceability, welding certifications, and inspection reports.

One-Stop Bridge Solution
Design → Fabrication → Transportation → Installation guidance → After-sales support.

Extensive Global Experience
Truss steel bridges delivered to Asia, Africa, Middle East, South America, and Europe.

Competitive Pricing & Reliable Delivery
Factory-direct production ensures cost efficiency and on-time completion.




Our Factory

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
