Suspension bridge

- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

Overview
Recommended Products

Description

A Suspension Bridge is a long-span steel bridge structure in which the deck is suspended from main cables anchored at both ends and supported by towers. It is widely used for rivers, bays, valleys, highways, railways, pedestrian crossings, and landmark infrastructure projects where ultra-long spans and high clearance are required.

Our suspension bridges are fabricated using high-strength structural steel such as Q355, Q460, S355, ASTM A572, combined with high-tensile steel wire cables, ensuring excellent load capacity, wind resistance, and long-term structural safety even under extreme environmental conditions.

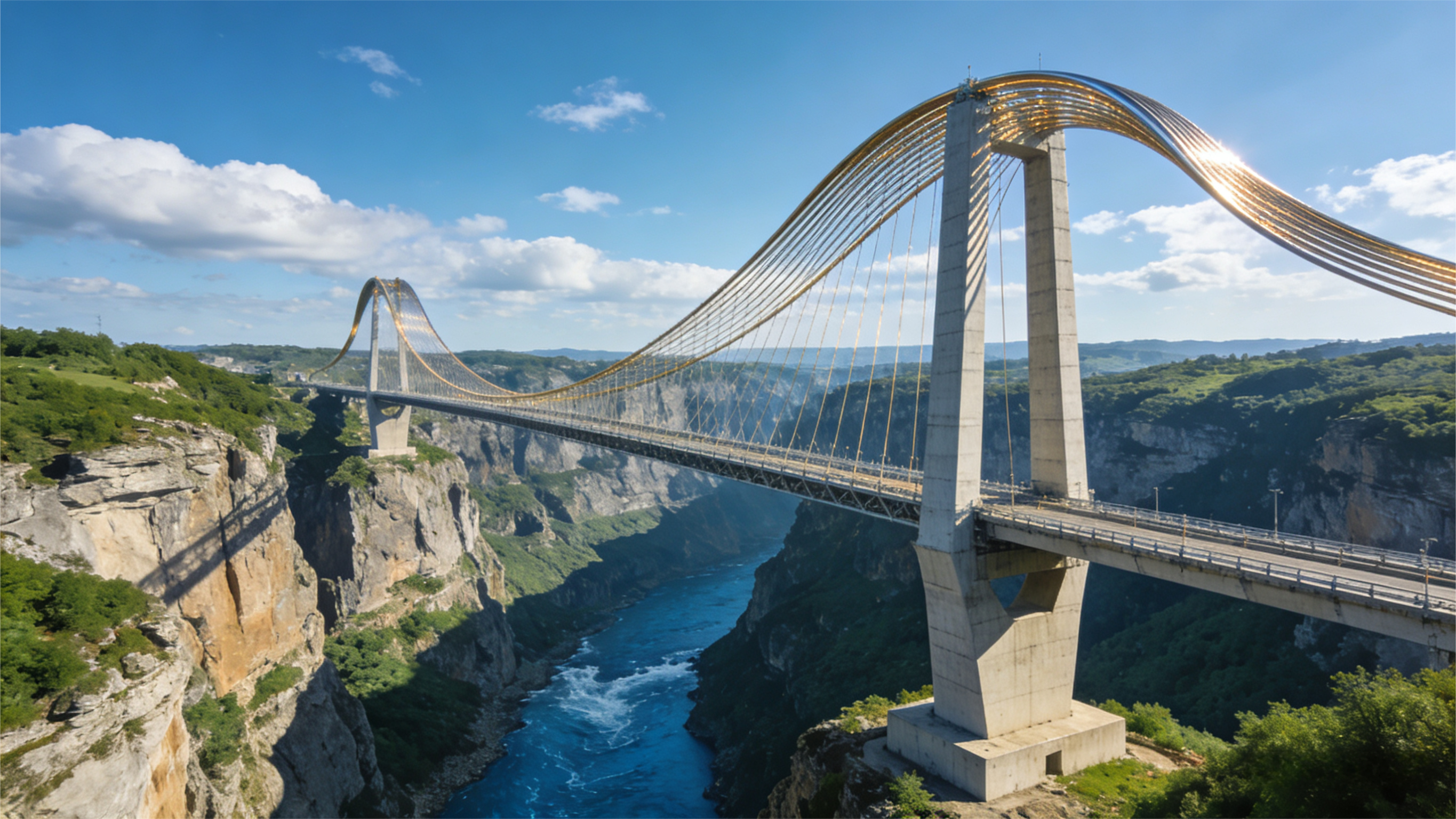

11 (1).png 11 (2).png

Product Attributes

After-sales Service	On site installation or installation guidance
Warranty Period	1 year

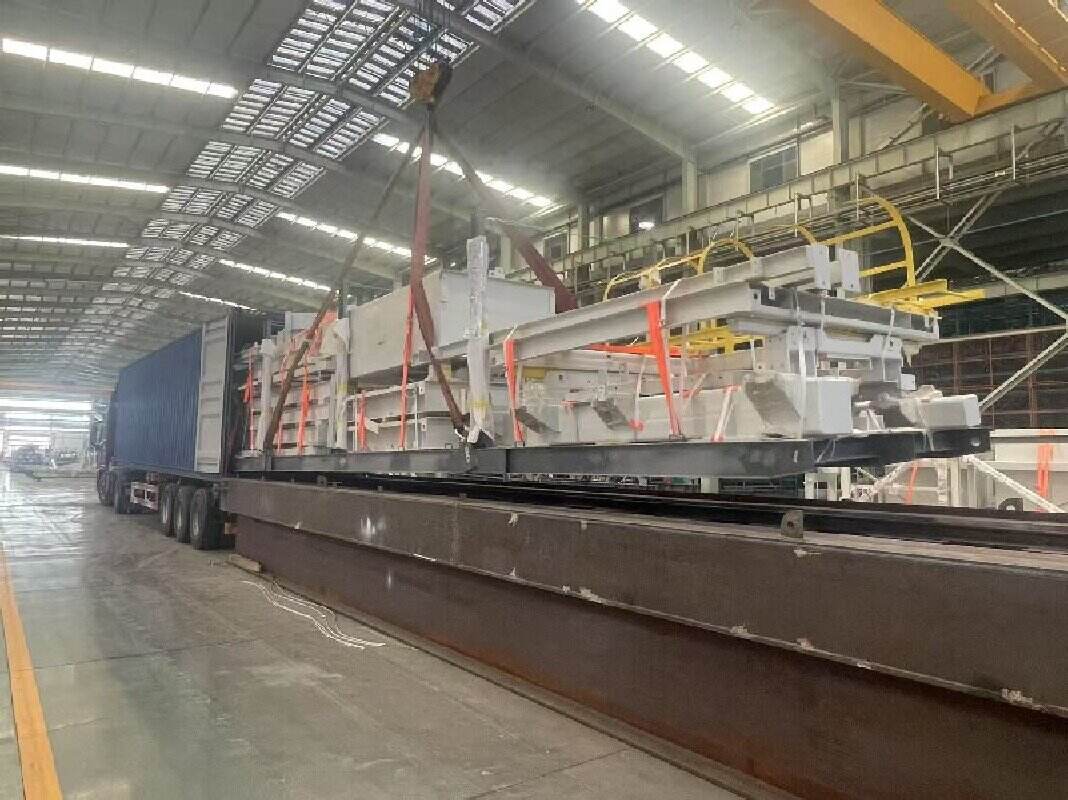

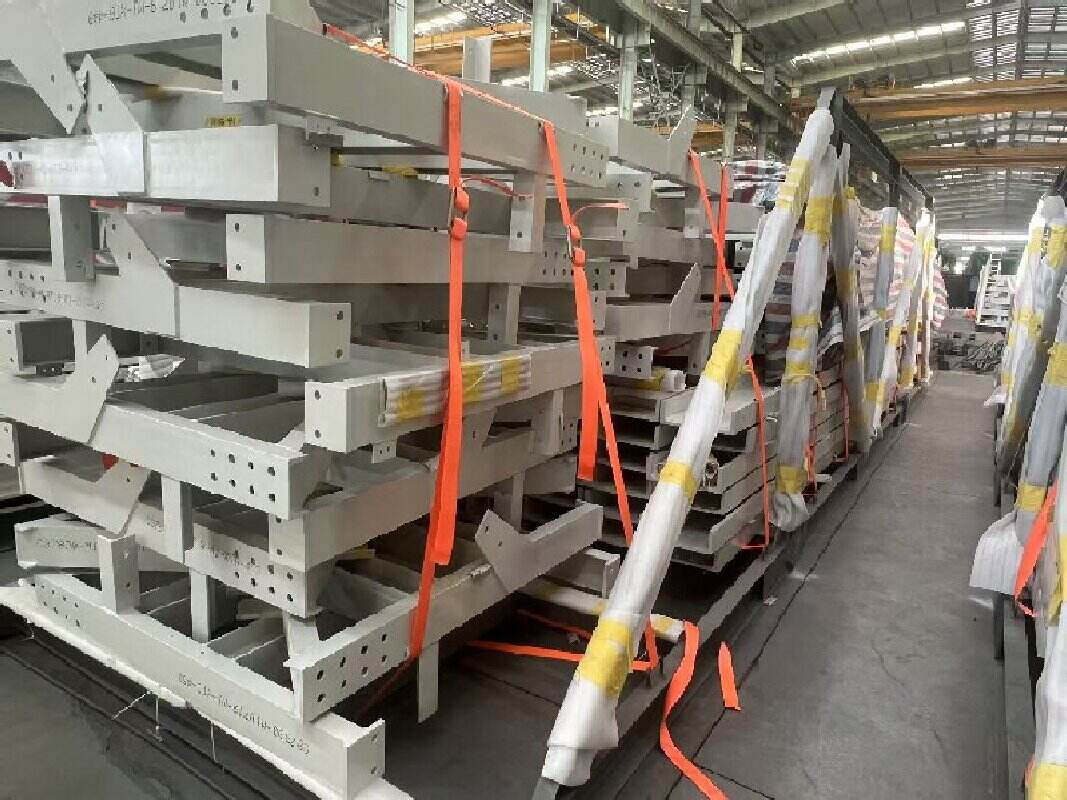

Transportation Packaging	Container or bulk carrier transportation
Specification	Based on actual project products
Brand	Guoshun
Place of Origin	Jinan
Standard	European, American, and National Standards

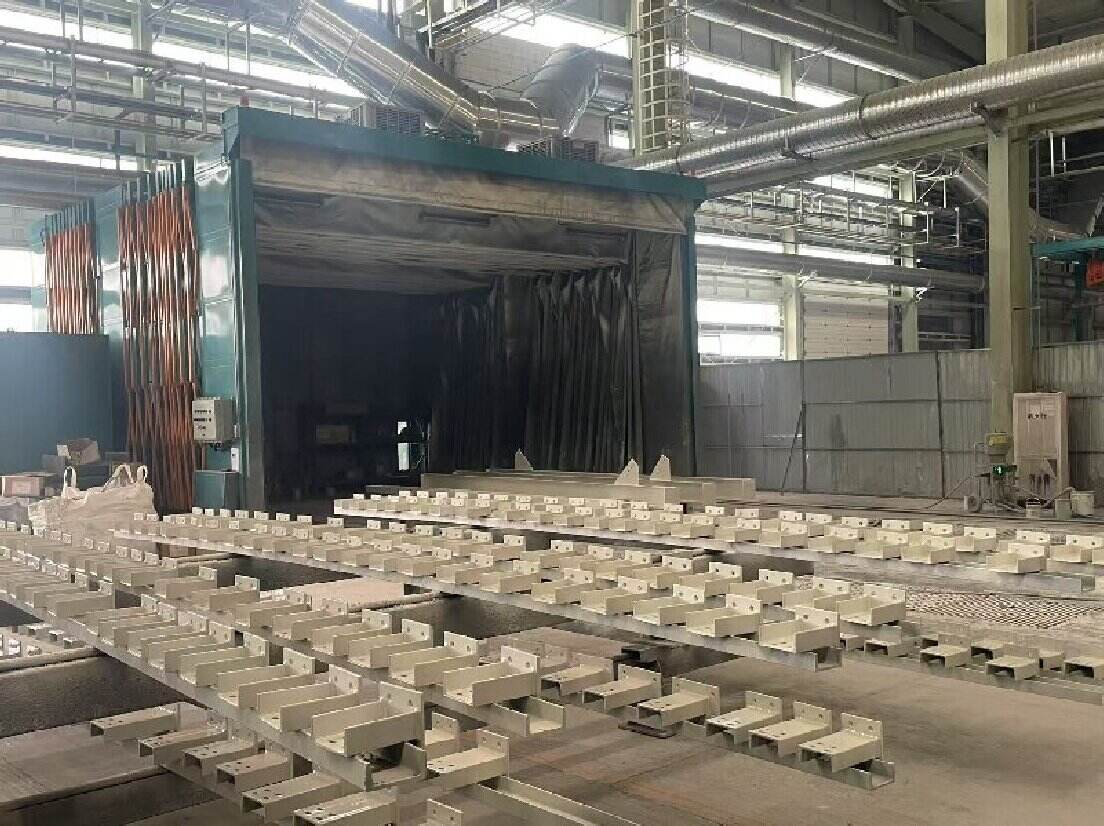

Surface Treatment	Spray painting or galvanizing

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

① Ultra-Long Span Capability
Ideal for 500–3000+ meter spans
Minimizes the number of piers in water
Perfect for deep rivers, sea crossings, and wide valleys

② Exceptional Wind & Seismic Resistance
Aerodynamically optimized deck structure
High vibration resistance with damping systems
Designed to withstand typhoons, earthquakes, and strong currents

③ High Load Capacity
Suitable for highway traffic, railway systems, and mixed-use transport
Supports heavy vehicles and continuous traffic flow
Safe for pedestrian-only or vehicle-pedestrian combination bridges

④ Long Service Life & Corrosion Protection
Hot-dip galvanized steel components
Multi-layer marine-grade anti-corrosion coating
Optional cathodic protection system
Service life 100+ years with proper maintenance

⑤ Iconic Architectural Appearance
Landmark-grade design
Custom tower shapes and cable arrangements
Enhances city skyline and regional image

Structural System & Manufacturing Process

Main Structural Components
Main cables (high-tensile steel wire bundles)
Main towers (steel towers or composite towers)
Stiffening truss or box girder deck
Suspenders (hangers)
Anchor blocks
Expansion joints & bearings

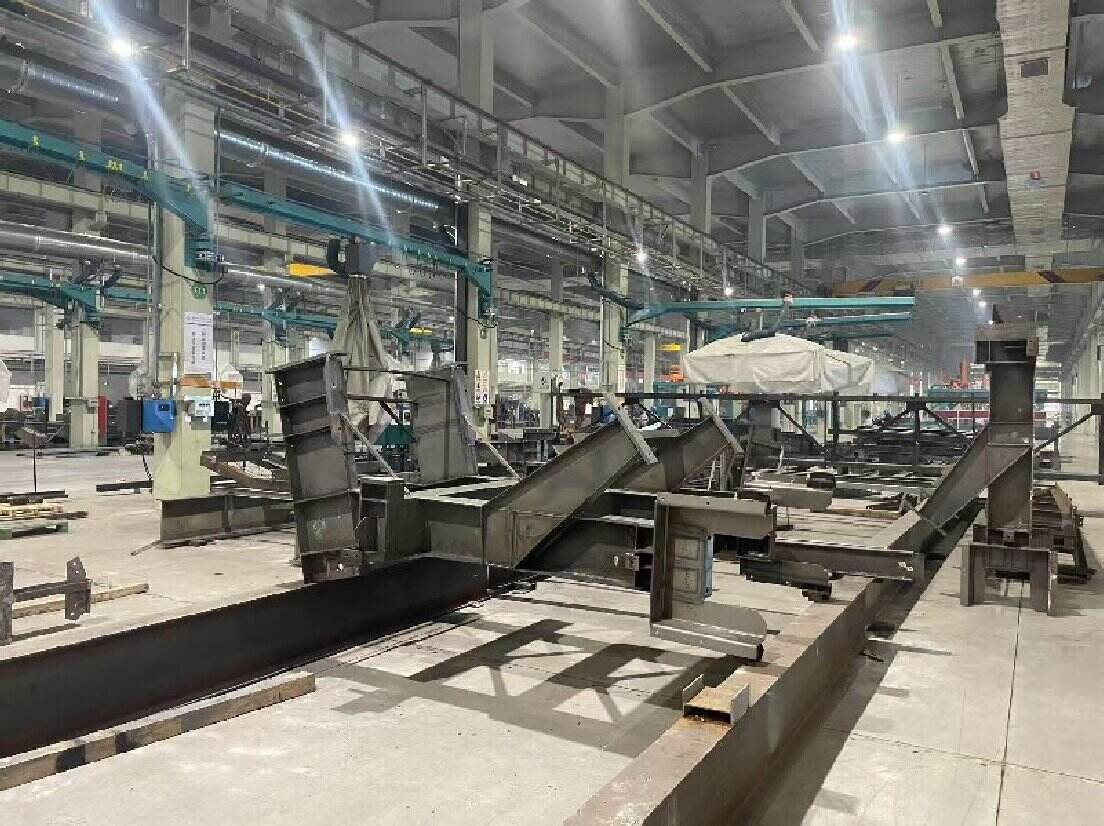

Manufacturing Process
3D structural analysis & wind tunnel simulation

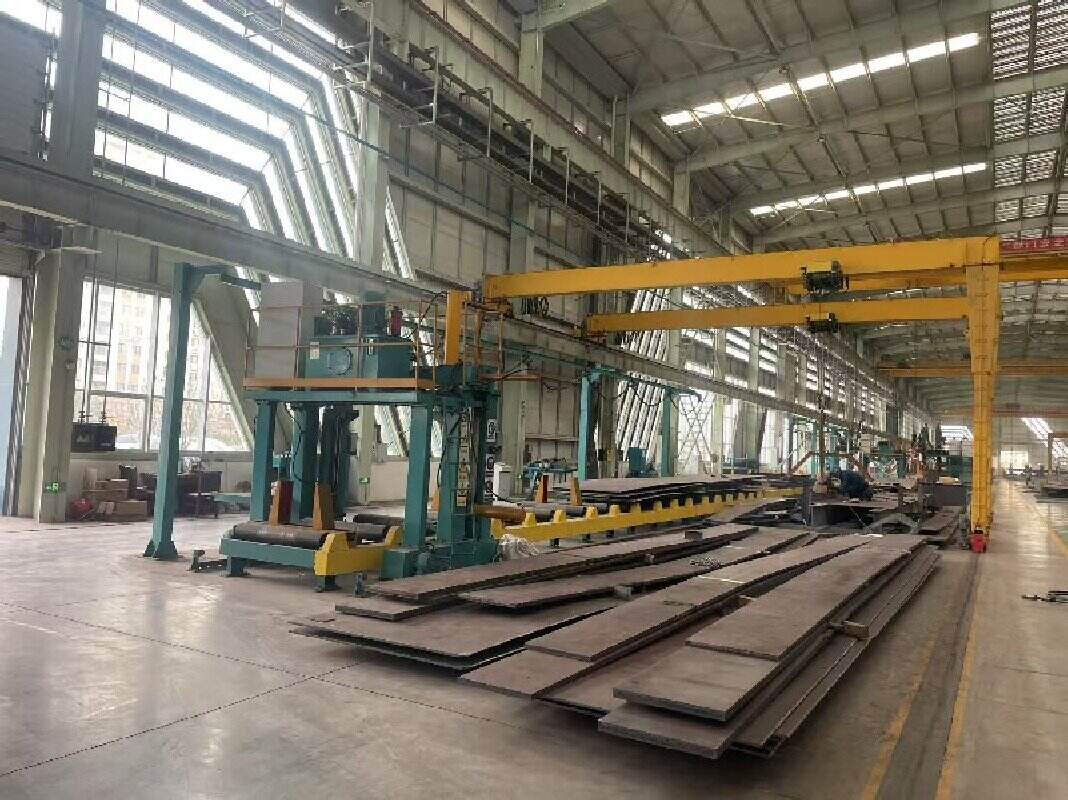

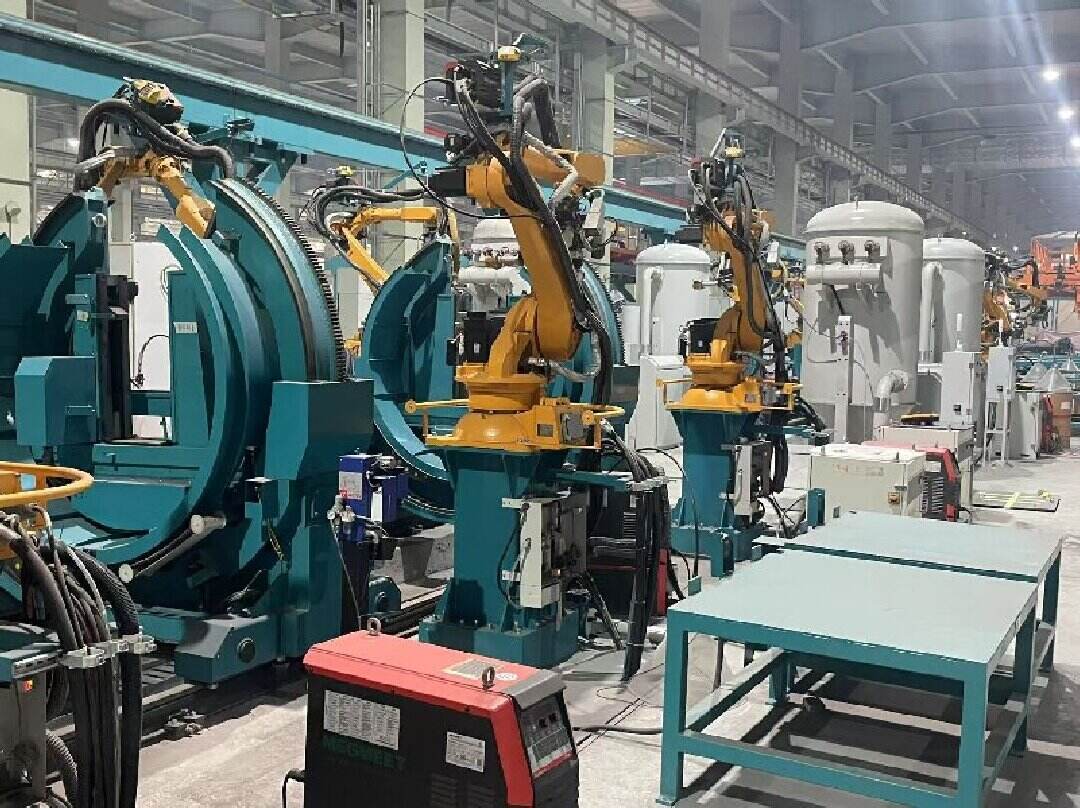

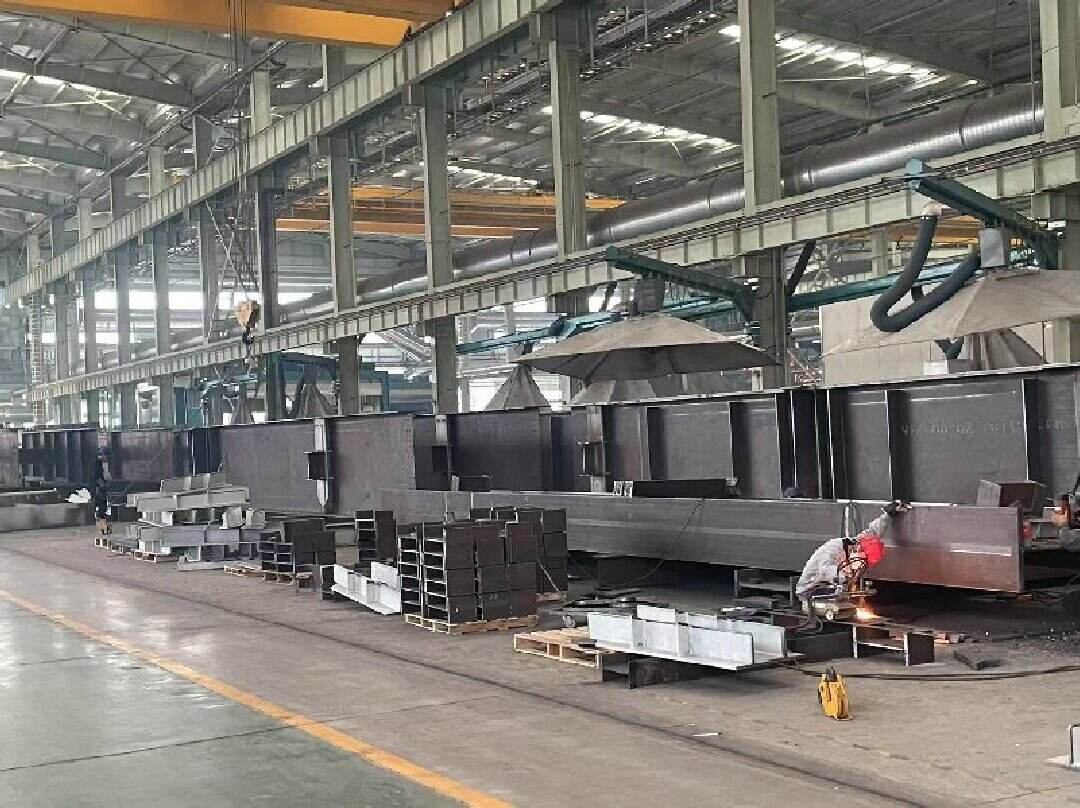

CNC cutting, automatic submerged arc welding
Cable spinning & socket casting
Full-scale factory trial assembly
Non-destructive testing (UT / RT / MT / PT)

Technical Specifications

Item	Specification
Bridge Type	Highway / Railway / Pedestrian
Main Span	300 – 3000+ m
Deck Width	6 – 40+ m
Design Load	Highway Class I or Railway Standard
Wind Resistance	≥ 70 m/s
Seismic Resistance	Grade 8–9
Material	Q355/Q460, S355, ASTM A572
Cable Material	High-Tensile Steel Wire
Corrosion Protection	HDG + Marine Coating
Design Life	100+ years
Standards	EN, ASTM, AASHTO, GB

Typical Applications

Highway river-crossing bridges
Sea-crossing bridges
Railway suspension bridges
Pedestrian & tourism bridges
City landmark bridges
Suspension footbridges in scenic areas

Why Choose Us

20+ years of steel bridge engineering experience
CE EN1090 & ISO 3834 certified fabrication base
Advanced bridge structural analysis & optimization capability
Full solution: design – fabrication – transportation – installation guidance
Export experience in Asia, Middle East, Africa, Europe
Competitive price with international quality control

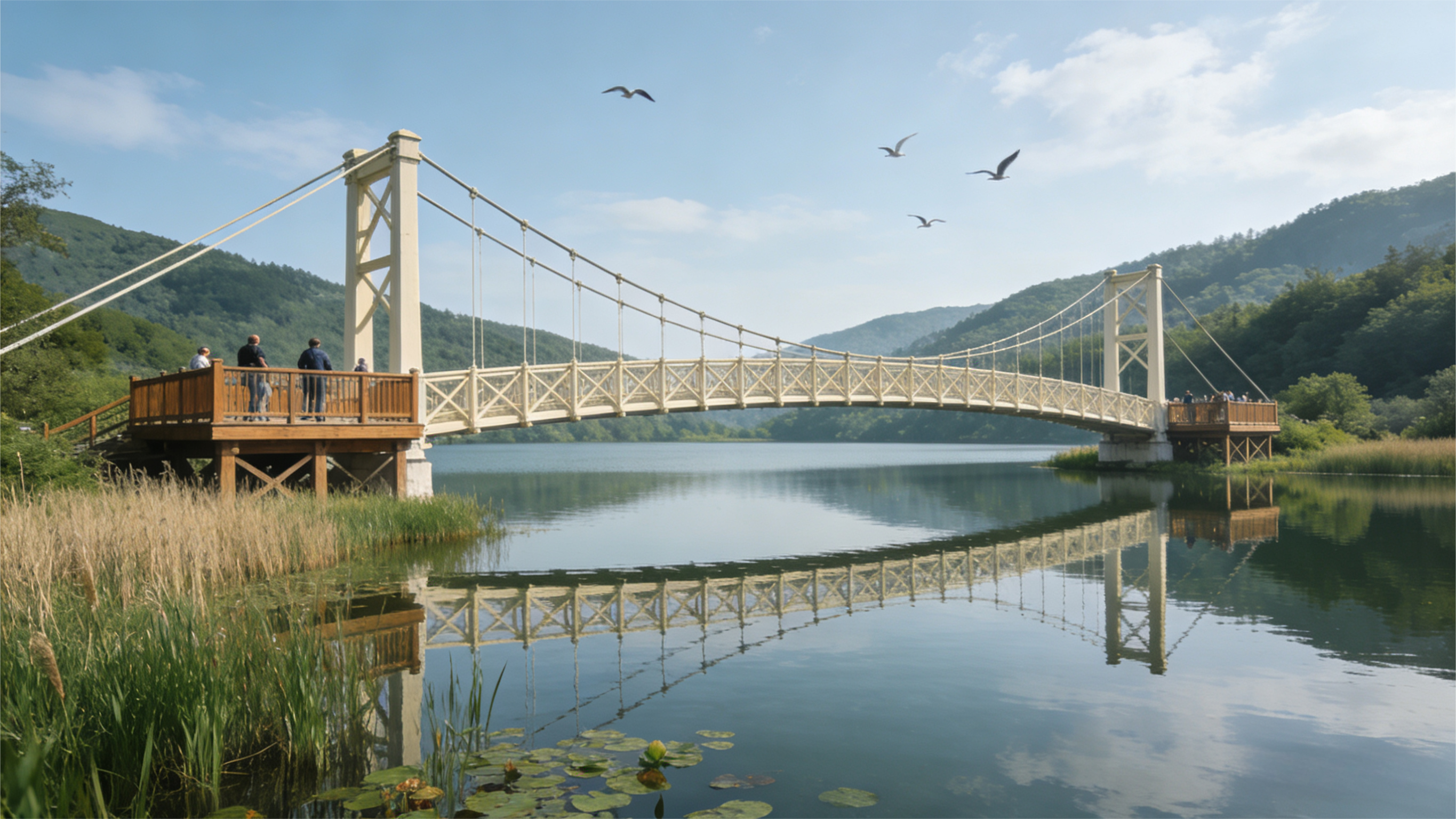

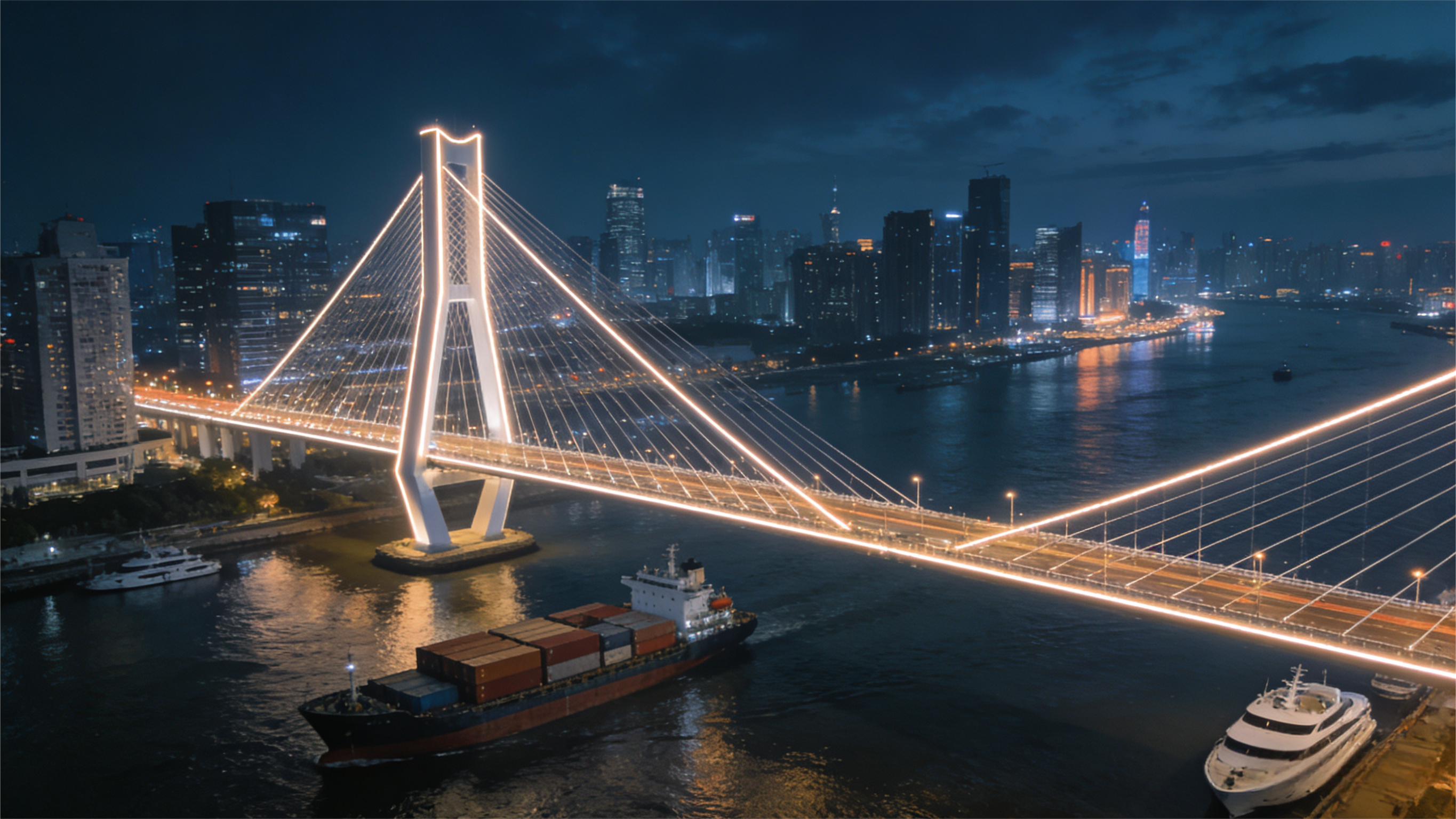

11 (3).png 11 (4).png
