Prefabricated steel column

Description

1.Material Standards

Steel Grade:
Q355B/Q460C (GB Standard)
ASTM A572 Gr.50 (US Standard)
Impact Toughness:
Akv ≥47J at -20°C (EN 10025 Certified)
Anti-Corrosion Treatment:
Hot-dip galvanizing (Average zinc coating ≥85μm, ISO 1461)
Or: Zinc-rich epoxy primer + polyurethane topcoat (Total DFT ≥220μm)

2. Manufacturing Process

Cutting Precision:
CNC plasma cutting (Tolerance: ±1mm)
Welding Technology:
Main welds: Submerged Arc Welding (SAW) with 100% UT inspection
Fillet welds: Robotic welding (ISO 5817 Class B)
End Treatment:
Milled end surfaces (Flatness ≤0.3mm/m)

3. Connection Design

Connection Methods:
High-strength bolting (Grade 10.9, HV≥320)
Welded end plates (Pre-fabricated grooves, site full-penetration welding)
Guoshun Group has complete qualifications and adheres to the development concept of "providing comprehensive services for industrial environmental protection and energy conservation to make customers more satisfied". It is committed to "creating comfortable spaces and improving the ecological environment". With the cooperation concept of not saying "no" to customers, it provides high-quality services to thousands of high-quality customers at home and abroad, and co creates a beautiful tomorrow of innovation and renewal!

Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T. The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Advantages

1.High strength and lightweight

Using Q355B/Q460C high-strength steel, the bearing capacity is increased by 30%, and the self weight is reduced by 50% compared to concrete beams

2.Quick installation

Factory prefabrication accuracy ± 2mm, on-site bolt connection, single beam installation ≤ 30 minutes (traditional cast-in-place takes 3 days)

3. Corrosion resistance and durability

Hot dip galvanizing (≥ 80 μ m) or epoxy coating (ISO 12944 C4 standard), with a lifespan of ≥ 50 years

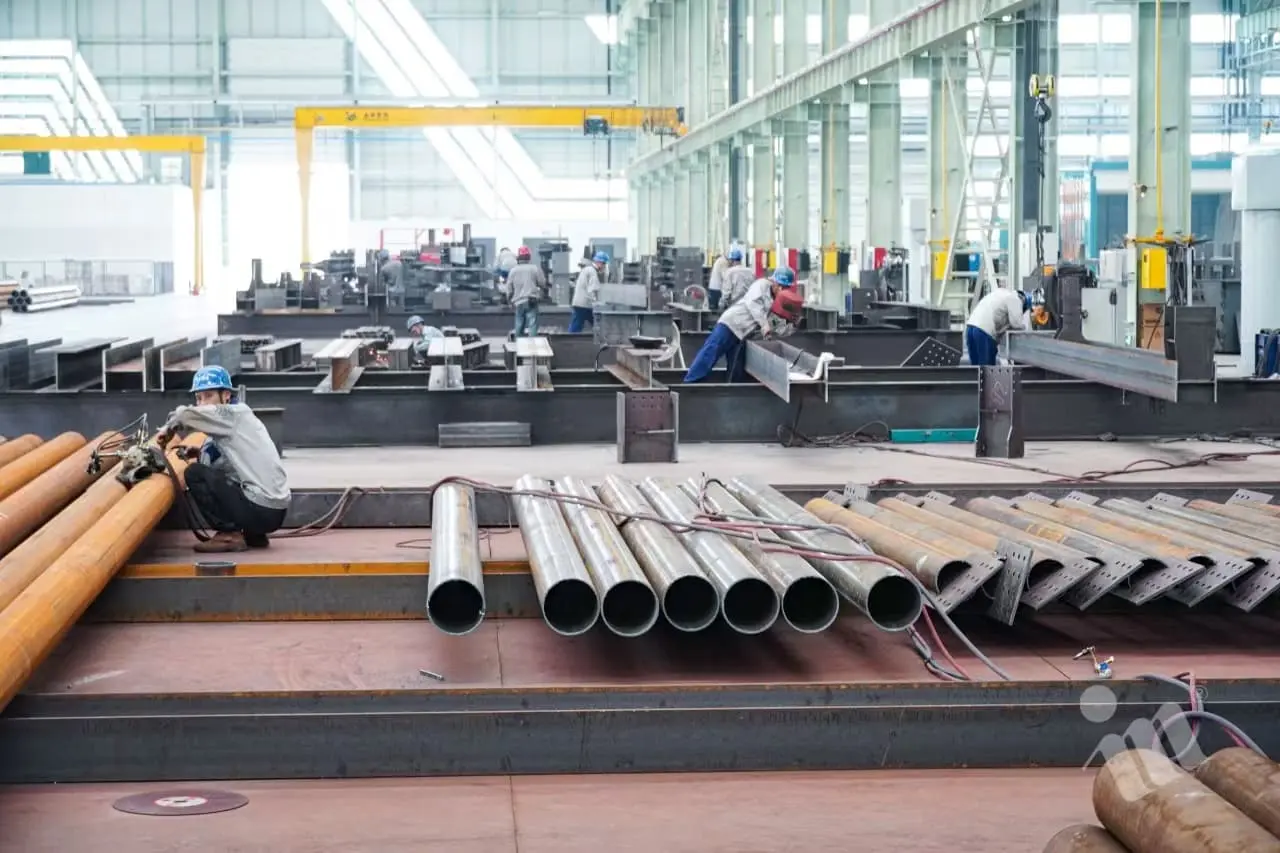

Our Factory

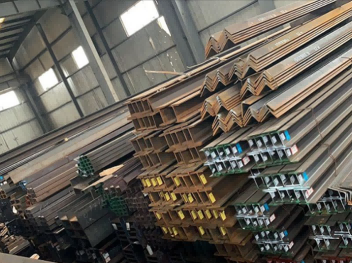

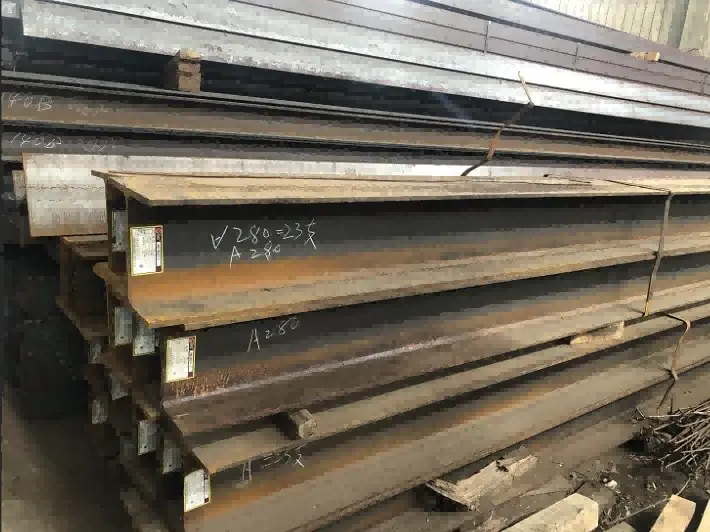

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
