Pedestrian Steel Bridge

Description

The Pedestrian Steel Bridge is a modular, high-strength structure designed for safe, efficient, and long-term pedestrian traffic across roads, rivers, railways, industrial zones, and urban public spaces.
Manufactured with high-grade structural steel, the bridge provides exceptional durability, stability, and weather resistance. Its modular design enables rapid installation, minimal site disruption, and flexible customization for different span lengths, widths, and architectural styles.
This bridge type is widely applied in municipal engineering, transportation hubs, industrial facilities, commercial districts, public parks, and urban infrastructure projects.
The Pedestrian Steel Bridge is engineered to comply with EN, AISC, ASTM, BS, and local safety standards, ensuring maximum safety and structural performance.

Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

① High Structural Strength & Stability
Manufactured using S355/S460, ASTM A36/A572, or equivalent high-strength steel.
Designed to withstand high foot traffic loads, wind loads, and seismic conditions.
Excellent resistance to deformation and fatigue for long-term performance.

② Modular & Prefabricated Design
All major components are prefabricated in our factory.
On-site assembly is fast, clean, and cost-effective.
Perfect for urban areas with limited construction windows.

③ Long Service Life with Anti-Corrosion Treatment
Hot-dip galvanizing, epoxy zinc-rich primer, or customized coating systems available.
Suitable for coastal, desert, industrial, or humid environments.
Service life: 30–50 years depending on coating type.

④ Aesthetic & Customizable Appearance

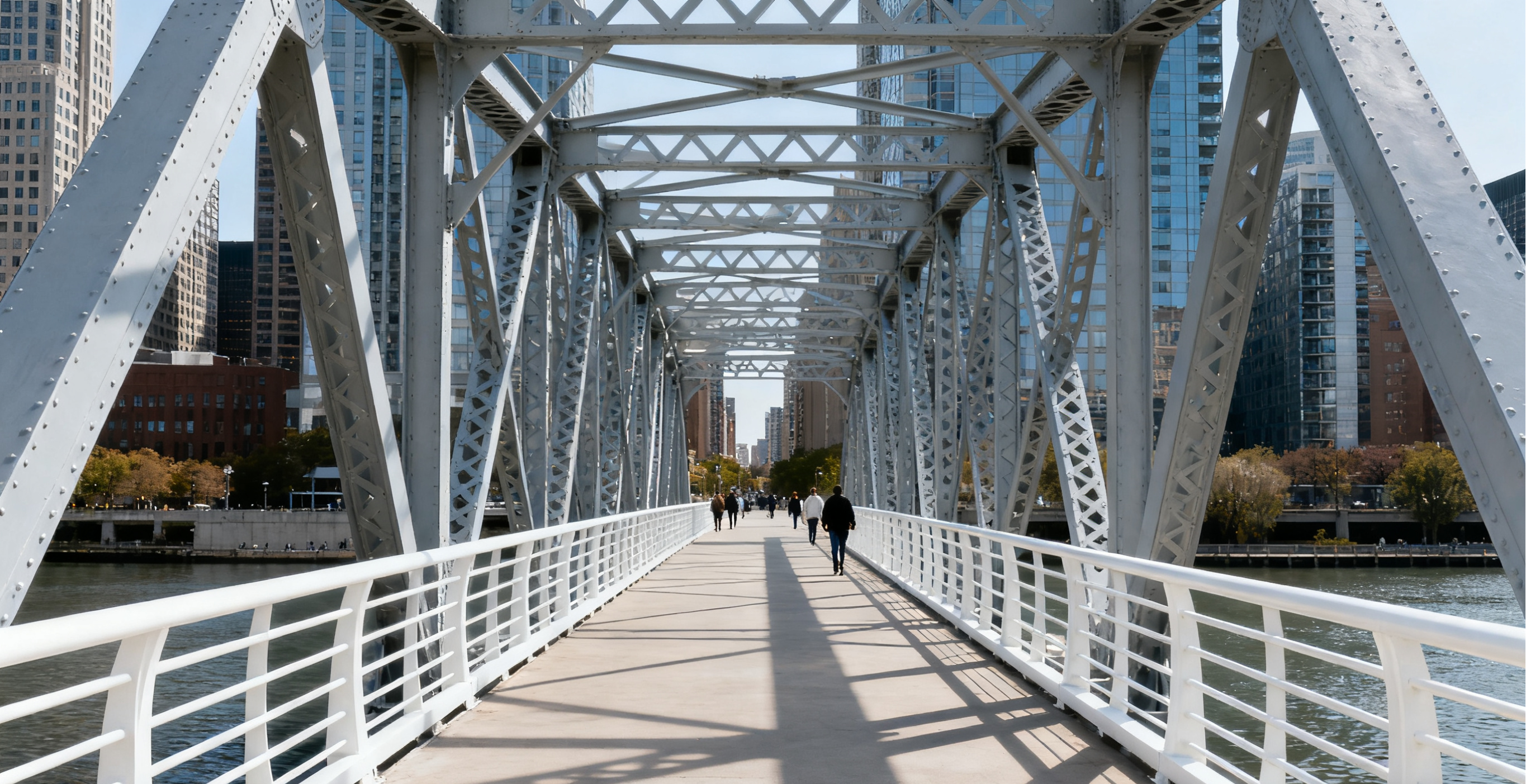

Truss, box-girder, arch, cable-stayed, and light steel forms available.

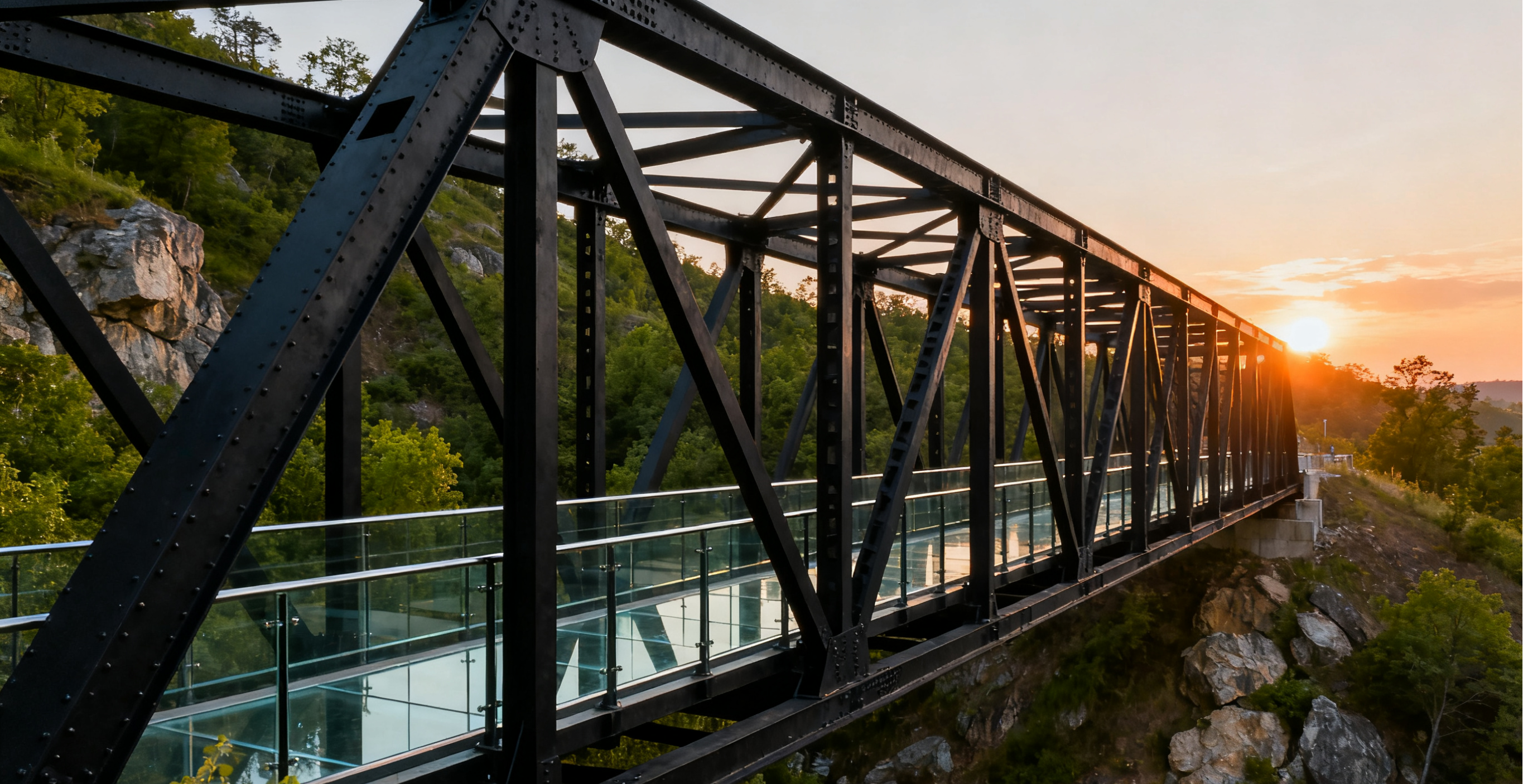

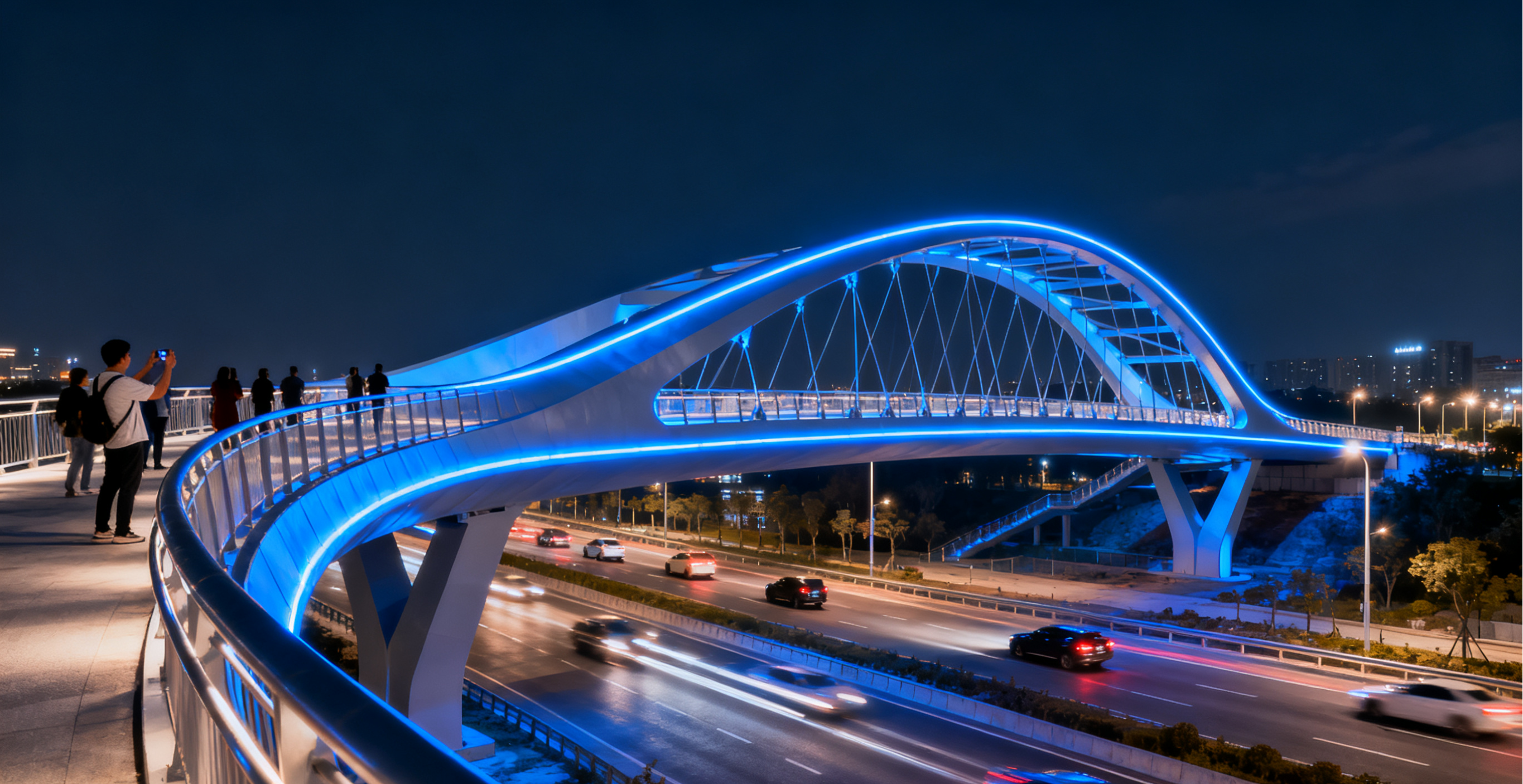

Optional lighting, glass rails, aluminum railings, and anti-slip walkways.
Architectural design tailored to city landscape requirements.

⑤ High Safety Standards
Anti-slip walkway surface to ensure pedestrian security.
Safety handrails, anti-fall net, and lighting can be integrated.
Compliant with international pedestrian bridge codes.

Manufacturing Process & Technical Features

① Precision Structural Fabrication
CNC cutting, robotic welding, submerged arc welding (SAW), and full-penetration welds.
All welded seams follow EN ISO 3834 / AWS D1.1 standards.
Ultrasonic testing (UT), magnetic particle testing (MT), and visual inspection applied.

② Strict Quality Control
Raw material traceability from steel mill certificates.
Dimensional tolerance checked according to EN 1090 / AISC.
Factory assembly simulation before shipment to ensure perfect alignment.

③ Surface Treatment Excellence
Automatic sandblasting to Sa 2.5.
Painting systems (Jotun / Hempel / International) available.
Galvanizing layer thickness ≥ 85–120 µm.

④ Easy Containerized Shipping
Bridge components designed for container loading.
Saves transportation cost and ensures safe delivery.
Standard packaging with steel racks and protective wrapping.

Technical Specifications

Application

① Pedestrian crossings over roads & highways
② Access bridges in industrial plants & factories
③ Walkways in ports, terminals, logistics parks
④ Footbridges in parks, scenic areas & campuses
⑤ Overpasses for BRT / metro / railway stations
⑥ Pedestrian links in commercial & residential districts

Why Choose Us

① 20+ years of steel structure manufacturing experience
② Certified by CE, EN1090, ISO 3834, ASME
③ Advanced fabrication facilities (CNC, SAW, robotic welding)
④ Full support for design, fabrication, delivery, and on-site guidance
⑤ Competitive pricing compared with international suppliers
⑥ Global export experience in 20+ countries
