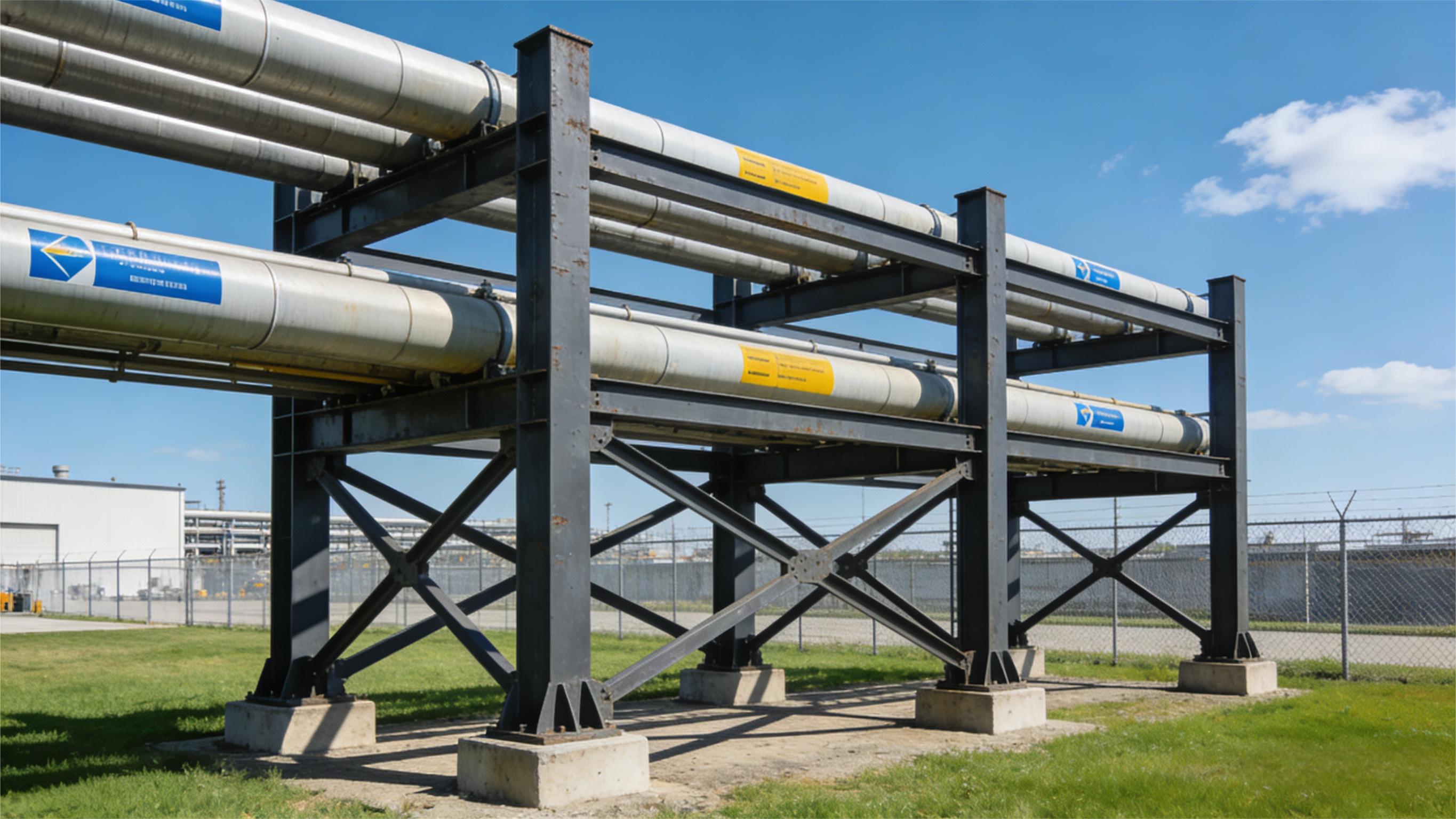

Steel structure pipe support
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- Overview
- Recommended Products
Description
A Steel Structure Pipe Support is a heavy-duty steel framework designed for supporting and organizing pipelines, power cables, instrumentation lines, and process systems in industrial facilities. It is widely used in oil & gas plants, chemical factories, power stations, refineries, water treatment plants, cement factories, and steel mills.
The system is fabricated with high-strength structural steel such as Q235, Q355, S275, S355, ASTM A36/A572, ensuring excellent load-bearing capacity, structural stability, and long-term durability. With modular prefabrication design, pipe supports offer fast installation, easy maintenance, and flexible expansion.
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Key Advantages
Designed to support heavy steel pipelines, large-diameter process pipes, and cable trays
Excellent resistance to vibration, thermal expansion, and dynamic loads
Meets EN, ASTM, AS/NZS, and GB structural standards
② Modular Design & Fast Installation
Factory-prefabricated components
Bolt-connected structure for quick on-site assembly
Construction time reduced by 40–60%
Easy for project expansion and future upgrading
③ Superior Anti-Corrosion Performance
Hot-dip galvanizing (HDG)
Zinc-rich epoxy primer + polyurethane top coating
Suitable for outdoor, coastal, chemical, and high-humidity environments
Service life of 30–50+ years
④ Flexible Structural Configurations
Single-span, multi-span, and multi-level pipe racks
Suitable for straight corridors, turning points, and elevation crossings
Compatible with conveyors, walkways, lighting, and fire protection systems
⑤ Safe & Easy Maintenance
Integrated walkways, handrails, and ladders
Convenient inspection and maintenance access
Fire-resistant coating available
Structural System & Manufacturing Process

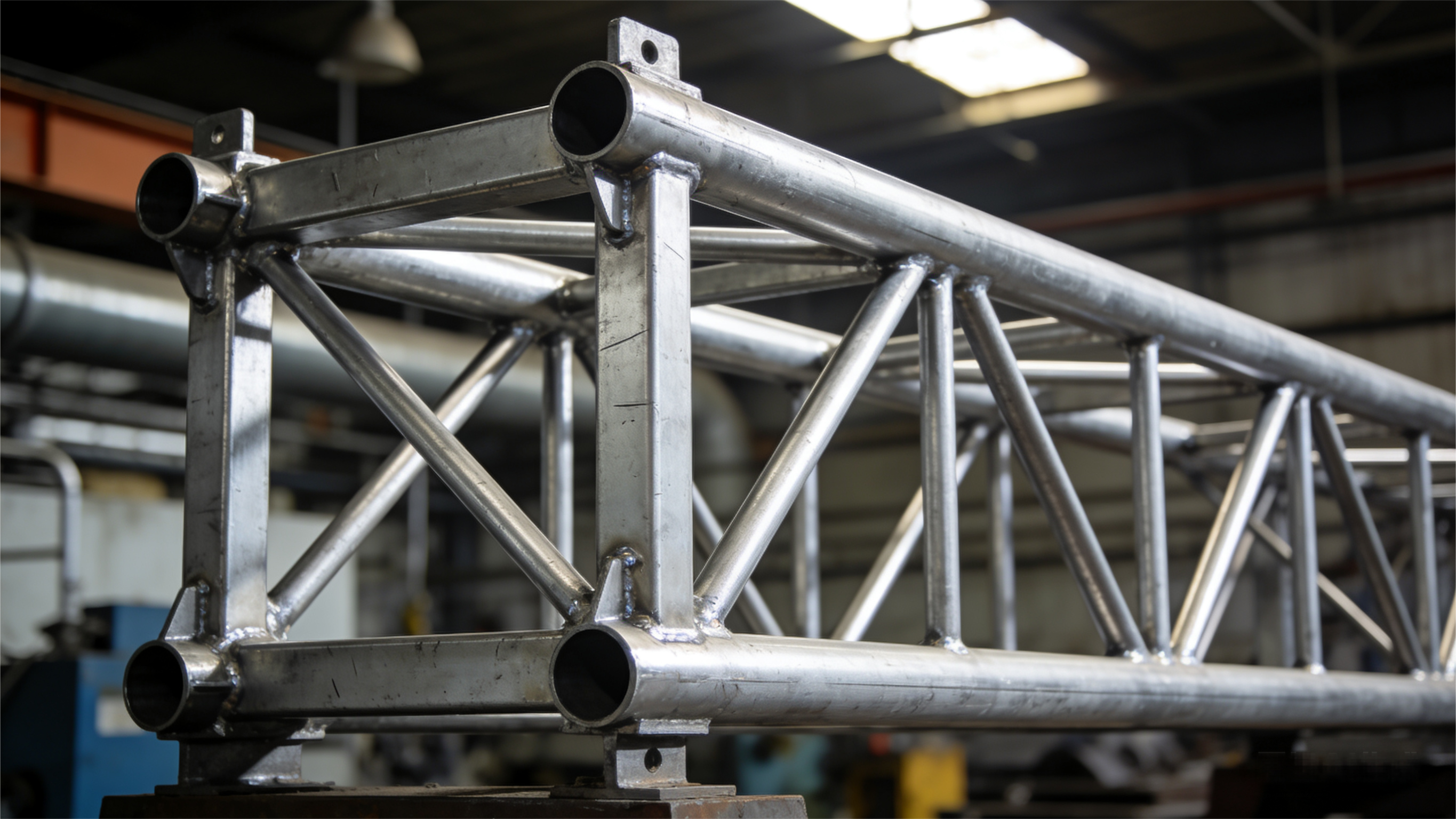

Main Structure
Hot-rolled H-beams, box columns, square tubes, C/Z purlins
Precision fabrication using TEKLA 3D modeling
CNC cutting, automatic welding, robotic fabrication

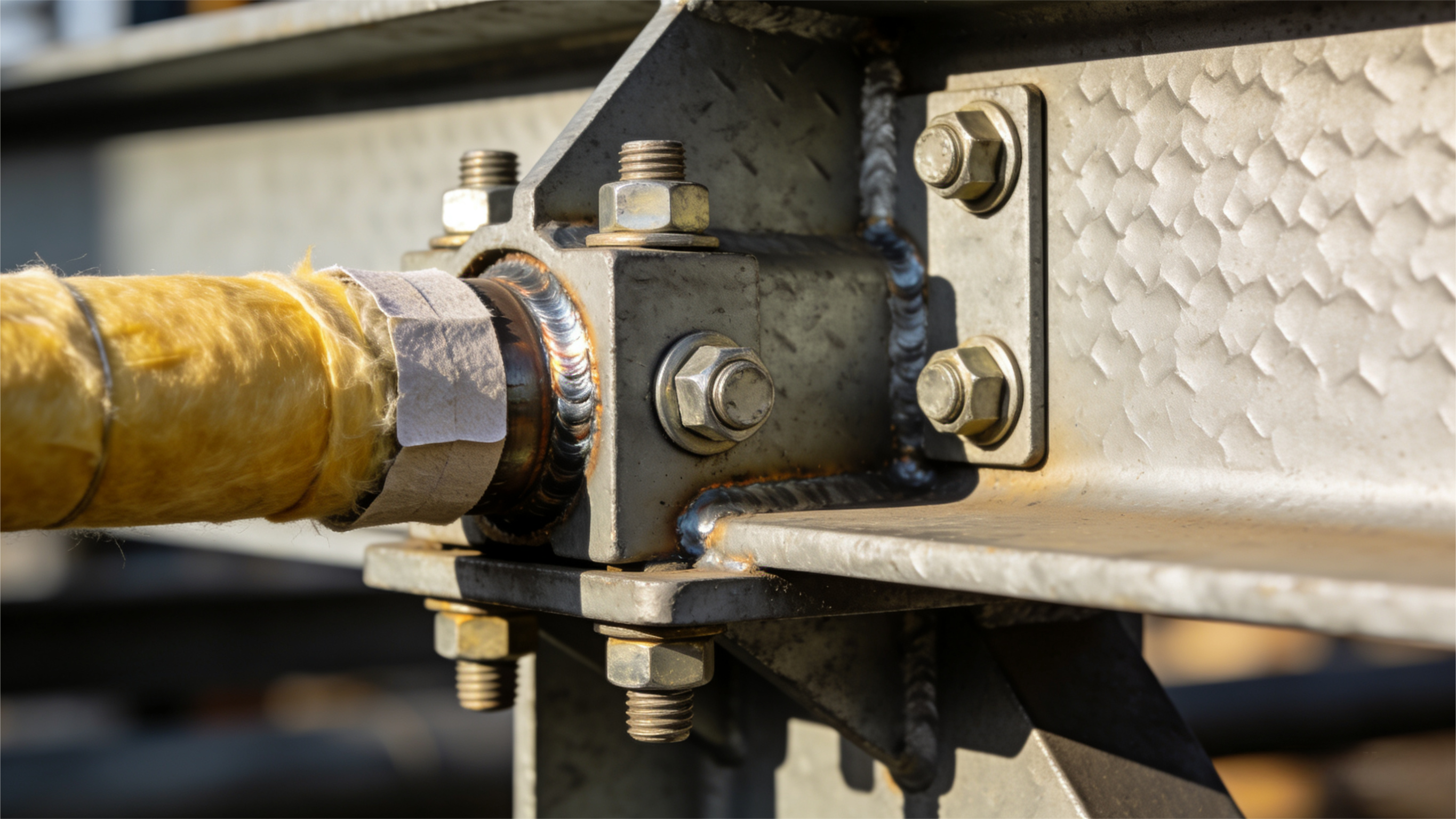

Connection Method
High-strength bolt connection
Partial welding for heavy-load sections
Platform & Accessories
Galvanized steel grating platforms
Cable tray support brackets
Anti-slip staircases and safety guardrails
Surface Treatment
Hot-dip galvanizing
Industrial-grade epoxy and polyurethane paint system
Marine-grade anti-corrosion coating optional
Technical Specifications
| Item | Specification |
| Material | Q235/Q355, S275/S355, ASTM A36/A572 |
| Support Height | 2-20 m (customized) |
| Span | 3-18 m (customized) |
| Load Capacity | 1-25 kN/m² |
| Structural Type | Single-layer / Multi-layer |
| Corrosion Protection | HDG / Multi-layer paint |
| Lifespan | 30-50+ years |
| Certification | EN1090 CE, ISO3834, ASME (optional) |
Application Fields
Oil & Gas pipeline corridors
Chemical and petrochemical factories
Power plant pipe support systems
Mining & cement plant material pipelines
Water supply & sewage treatment plants
Steelmaking and metallurgical industries
Why Choose Us
20+ years of steel structure engineering experience
CE EN1090 & ISO 3834 certified factory
Full solution from design to fabrication and delivery
Precise welding, strict quality inspection, and NDT testing
Competitive pricing with international export standards
On-time delivery and overseas installation guidance
Our Factory
Raw material storageMaterial cuttingAutomatic Welding
Manual weldingWeld seam treatmentDeep processing
PaintingDeliveryPackaging
