Passing truss

- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- MOQ: 100 Tons

Overview
Recommended Products

Description

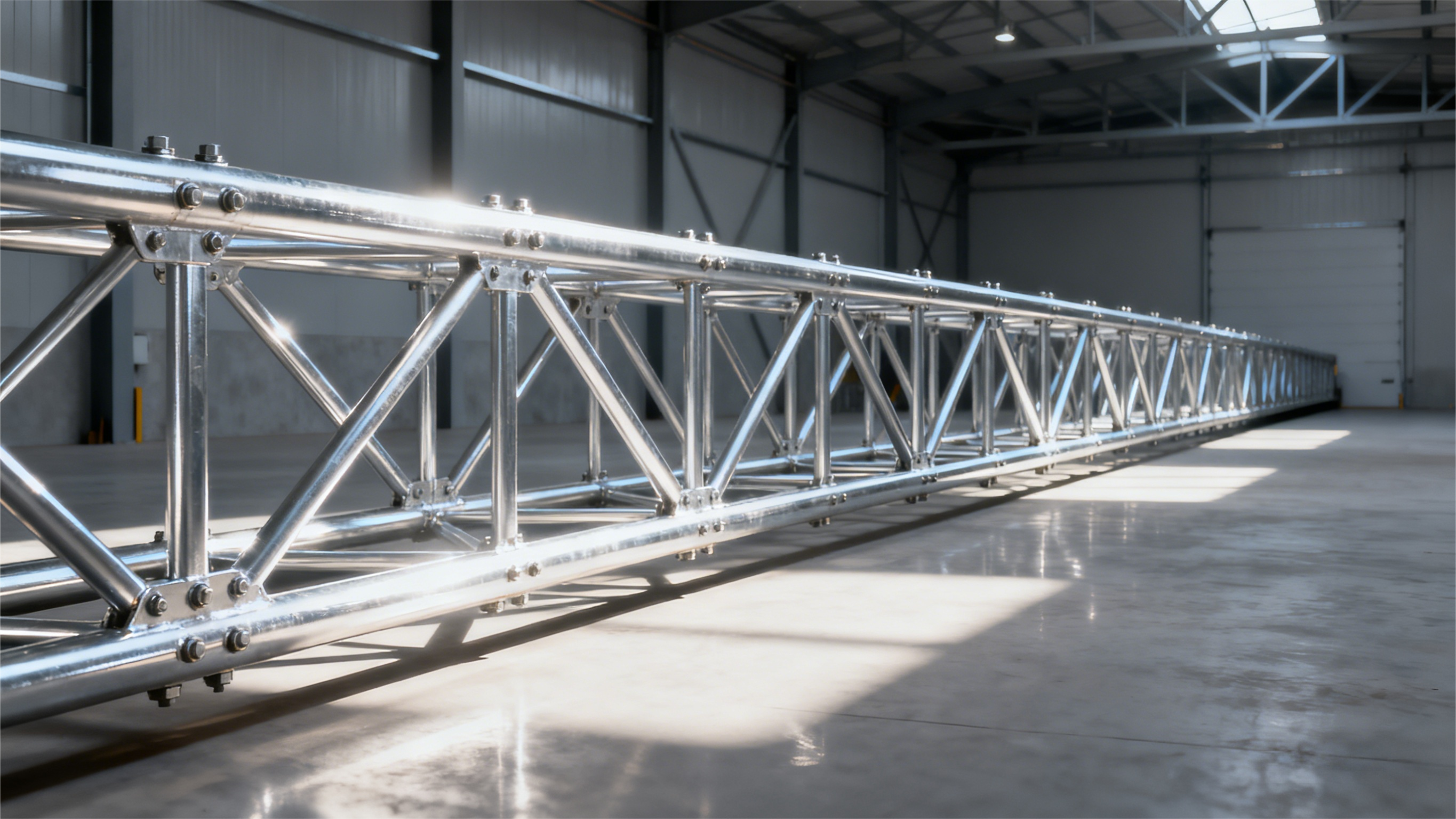

The Passing Truss is a modular and high-strength steel truss system designed to create safe, stable, and efficient passageways for pedestrians, workers, or equipment. It is widely used in industrial platforms, construction walkways, maintenance access routes, bridges, pipe-rack crossings, and temporary transit structures.

Manufactured with high-quality structural steel and prefabricated in standardized modules, the passing truss combines superior load-bearing capacity, fast installation, low weight, and strong corrosion resistance, making it suitable for both permanent and temporary applications.

111 (1).png

Product Attributes

After-sales Service	On site installation or installation guidance
Warranty Period	1 year
Transportation Packaging	Container or bulk carrier transportation
Specification	Based on actual project products
Brand	Guoshun
Place of Origin	Jinan
Standard	European, American, and National Standards
Surface Treatment	Spray painting or galvanizing

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

Key Advantages

① High Strength & Structural Stability
Triangular truss system ensures excellent load distribution.
Suitable for pedestrian loads, equipment access, and industrial operations.
Designed to withstand heavy usage and dynamic forces.

② Lightweight & Modular Design
Prefabricated sections significantly reduce weight and transportation cost.
Quick on-site assembly through bolted connections.
Ideal for elevated platforms or long-distance access routes.

③ Fast and Efficient Installation
All components prefabricated with precise holes and connectors.
Minimal on-site welding required.
Installation speed increased by 40–60% compared with traditional structures.

④ Long Service Life & Corrosion Resistance
Optional hot-dip galvanizing, epoxy coating, or powder coating.
Weather-resistant for outdoor and industrial environments.
Service life up to 30–50 years depending on coating system.

⑤ Flexible Customization Options
Available in multiple spans and heights.
Optional roofing, grated floors, safety rails, and anti-slip surfaces.
Can be installed as single-span, multi-span, or suspended structure.

Manufacturing Process & Technical Features

① High-Precision Fabrication
CNC cutting and automated welding ensure accuracy.
Produced using high-strength steel such as Q355, Q460, S355, ASTM A572.
3D modeling (TEKLA) used to guarantee installation precision.

② Strict Quality Control
Weld inspection under AWS D1.1 / EN ISO 3834.
NDT: UT/MT/RT for structural welds.
Dimensional tolerance meets EN 1090 / AISC standards.

③ Surface Treatment Options
Sandblasting to Sa 2.5
Epoxy zinc-rich primer + polyurethane topcoat
Hot-dip galvanizing (HDG) for harsh environments
Powder coating optional

Technical Specifications

Item	Specification
Material	Q235/Q355/Q460, S235/S355/S460, ASTM A36/A572
Type	Triangular / Quadrangular passing truss
Span Length	3–30 m (customizable)
Height	1–3 m
Width	0.8–4 m
Load Rating	Pedestrian, maintenance, equipment load
Surface	Painted / HDG / Powder coated
Connection	Bolted modular system
Standards	EN 1090 / AISC / AS/NZS

Application

Industrial access walkways
Factory maintenance platforms
Construction site temporary passage
Pipe rack crossing bridges
Conveyor belt access platforms
Pedestrian walkways
Tunnel or shaft access systems
Emergency evacuation routes

Why Choose Us

Over 20 years of truss and steel structure fabrication
CE, EN1090, ISO3834, ASME certified
Advanced CNC + robotic welding production lines
Global project experience in 20+ countries
Large output capacity and fast delivery
Comprehensive customization and engineering support
