Temporary Steel Bridge / Bailey Bridge Components
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- MOQ: 100 Tons
- Overview
- OUR FACTORY
- Recommended Products
High-strength steel panels
Transoms (cross beams)
Stringers
Decking system (steel or timber deck options)
Bracing frames
Bearings and base plates
Connection pins and bolts
Raw Material Testing (Q345B / High-Strength Structural Steel)
CNC Cutting & Precision Machining
Automatic Welding
Dimensional Inspection
Surface Treatment (Hot-Dip Galvanizing)
Load Testing (if required)
Packing & Export Preparation
Emergency Disaster Relief Bridges
Temporary Construction Access Roads
Military & Defense Applications
Rural & Remote Area Infrastructure
Mining and Industrial Projects
Flood-Damaged Bridge Replacement
Traffic Diversion During Road Construction
Product Overview

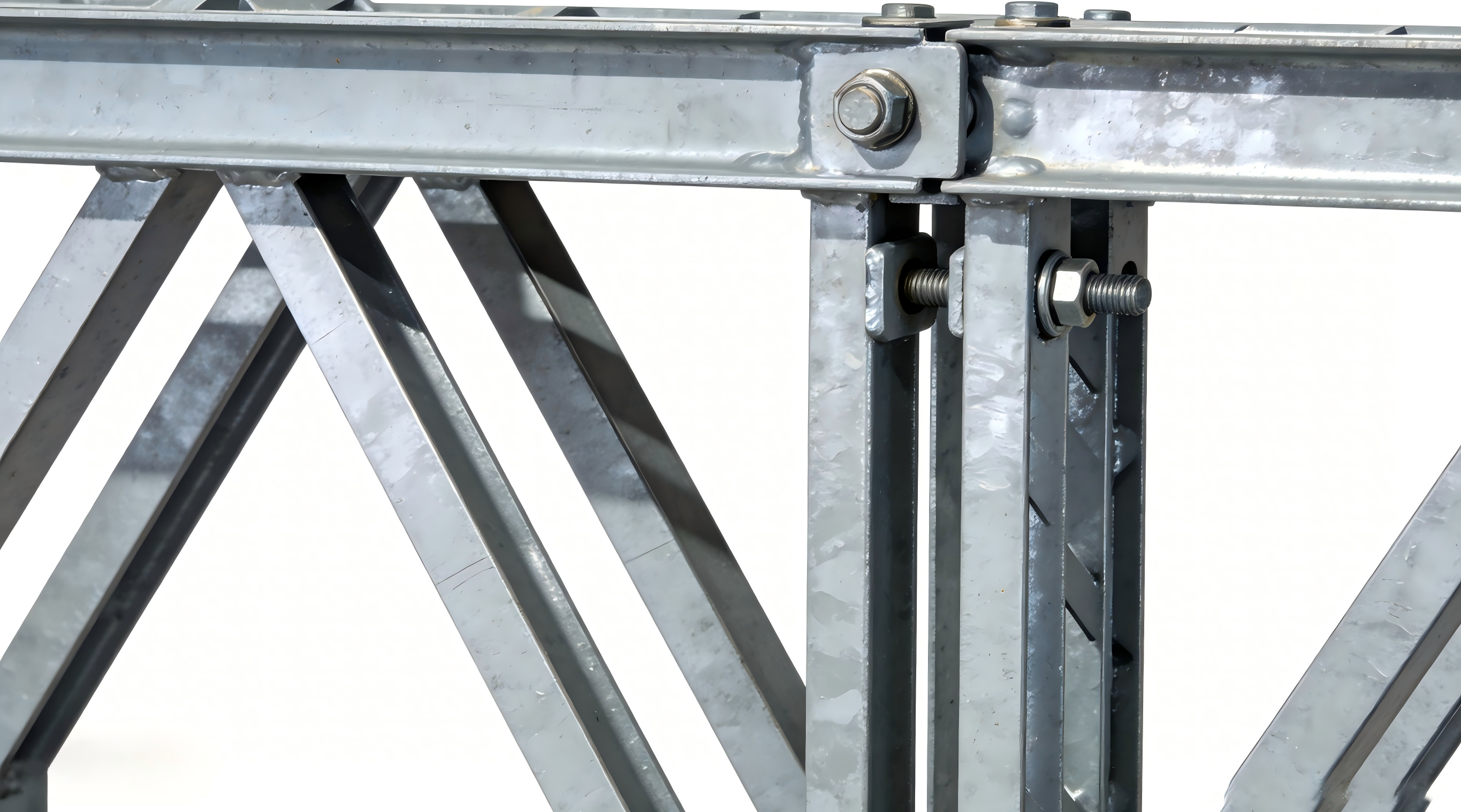

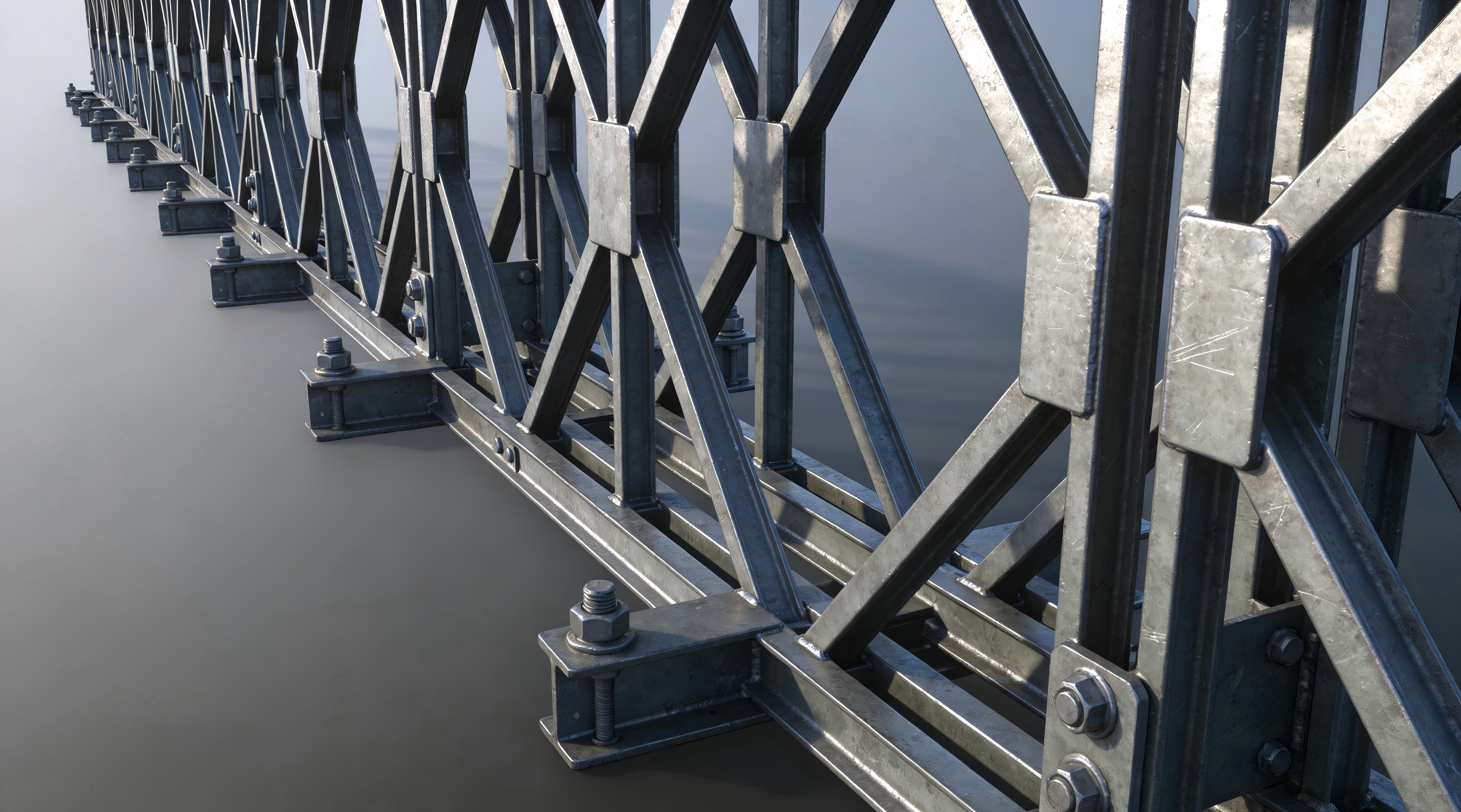

Our Temporary Steel Bridge / Bailey Bridge Components are modular prefabricated steel bridge systems designed for rapid installation and reliable load-bearing performance. Originally developed for military and emergency use, Bailey bridges are now widely used in infrastructure construction, disaster relief, mining access roads, and temporary traffic diversion projects.
The system is composed of standardized interchangeable components that can be quickly assembled on-site without heavy machinery. It provides a cost-effective and reusable solution for temporary or semi-permanent bridge applications.
We supply complete bridge systems as well as individual components according to project requirements.
Key Advantages
✔ Modular & Interchangeable Design
Standardized panels and components allow flexible configuration for different span and load requirements.
✔ Rapid Installation
Can be assembled with minimal equipment and labor, ideal for emergency or remote areas.
✔ High Load Capacity
Designed to meet international load standards for vehicles, trucks, and construction equipment.
✔ Reusable & Relocatable
Bridge components can be dismantled and reused multiple times.
✔ Corrosion Protection
Hot-dip galvanizing ensures long service life in harsh environments.
✔ Custom Engineering Support
Load design available according to AASHTO, BS, or other project specifications.
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Technical Features & Production Process
Structural Features
Production Process
Each component undergoes strict quality control to ensure interchangeability and structural integrity.
Technical Specifications (Customizable)
| Item | Specification |
| Bridge Type | Single / Double / Triple Panel |
| Span Length | 9m – 60m (Customizable) |
| Width | 3.7m / 4.2m / Custom |
| Load Capacity | HS20 / HS25 / 30–70 Tons |
| Material | Q345B / High Tensile Structural Steel |
| Surface Treatment | Hot-Dip Galvanized |
| Deck Type | Steel Deck / Timber Deck |
| Assembly Method | Pin-Connected Modular System |
| Service Life | 10–20 Years (Temporary / Semi-Permanent) |
Application Scenarios
Our Bailey bridge systems are widely used in:
Suitable for both vehicle and pedestrian traffic.
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Why Choose Us
✔ Experienced Steel Structure Manufacturer
✔ Professional Engineering & Load Calculation Support
✔ Strict Quality Control & International Standards Compliance
✔ Competitive Factory Direct Pricing
✔ Export Packaging & Global Shipping Experience
✔ Fast Production for Urgent Projects
We provide complete technical support including installation guidance and assembly drawings.
