Steel Support Structure for Solar Mounting Systems
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- MOQ: 100 Tons
- Overview
- OUR FACTORY
- Recommended Products

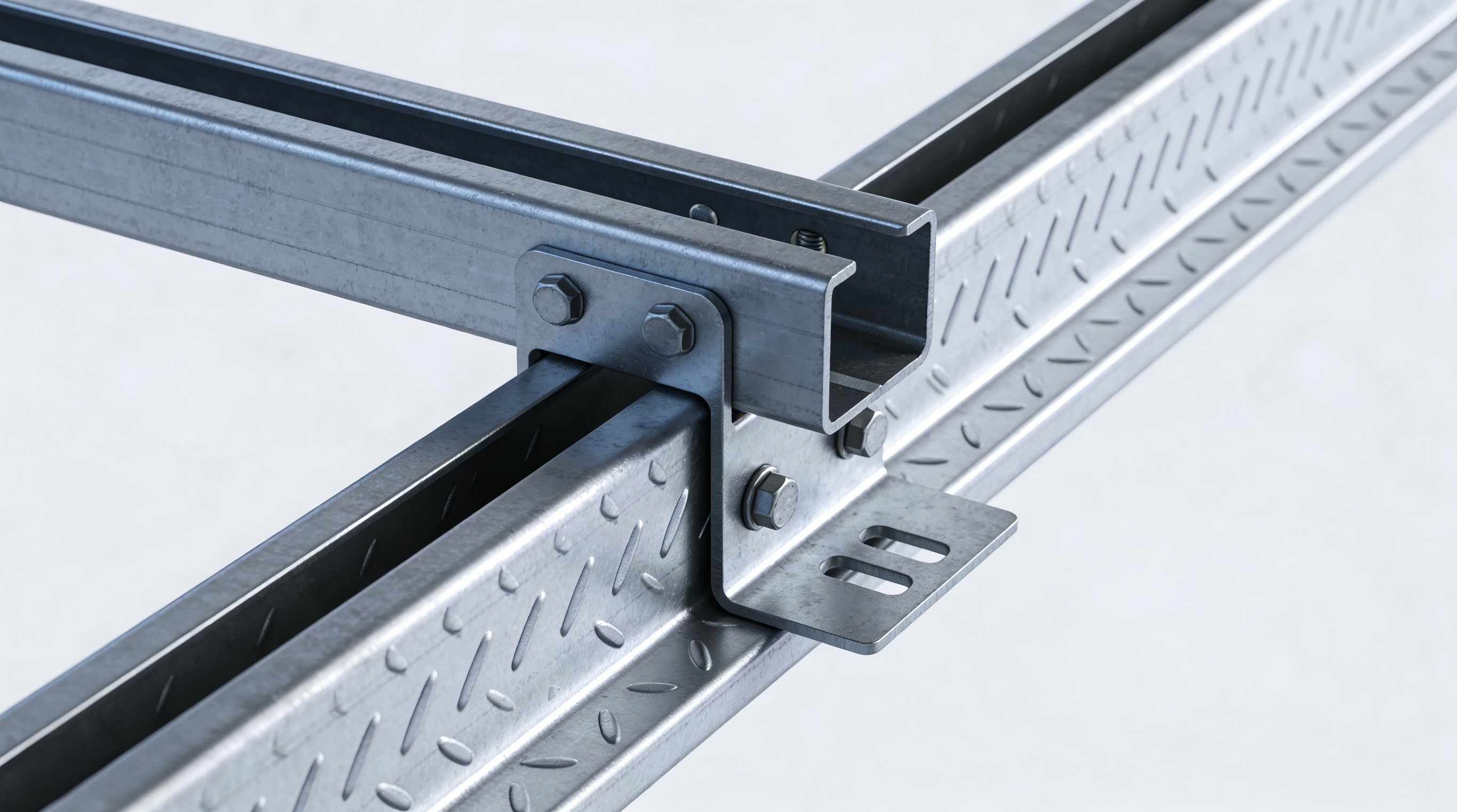

C-channel / U-channel / H-beam steel structure
Adjustable tilt angle (fixed or seasonal adjustable)
Ground screw or concrete foundation options
Reinforced bracing system
Anti-loosening bolt connections
Raw Material Inspection
CNC Cutting & Punching
Precision Welding
Surface Treatment (Hot-Dip Galvanizing ≥ 65–85μm)
Dimensional & Coating Inspection
Packing & Export Loading
Utility-Scale Solar Power Plants
Ground-Mounted PV Farms
Industrial & Commercial Rooftop Solar Systems
Agricultural Solar Projects (Agri-PV)
Carport Solar Structures
Off-Grid Solar Installations

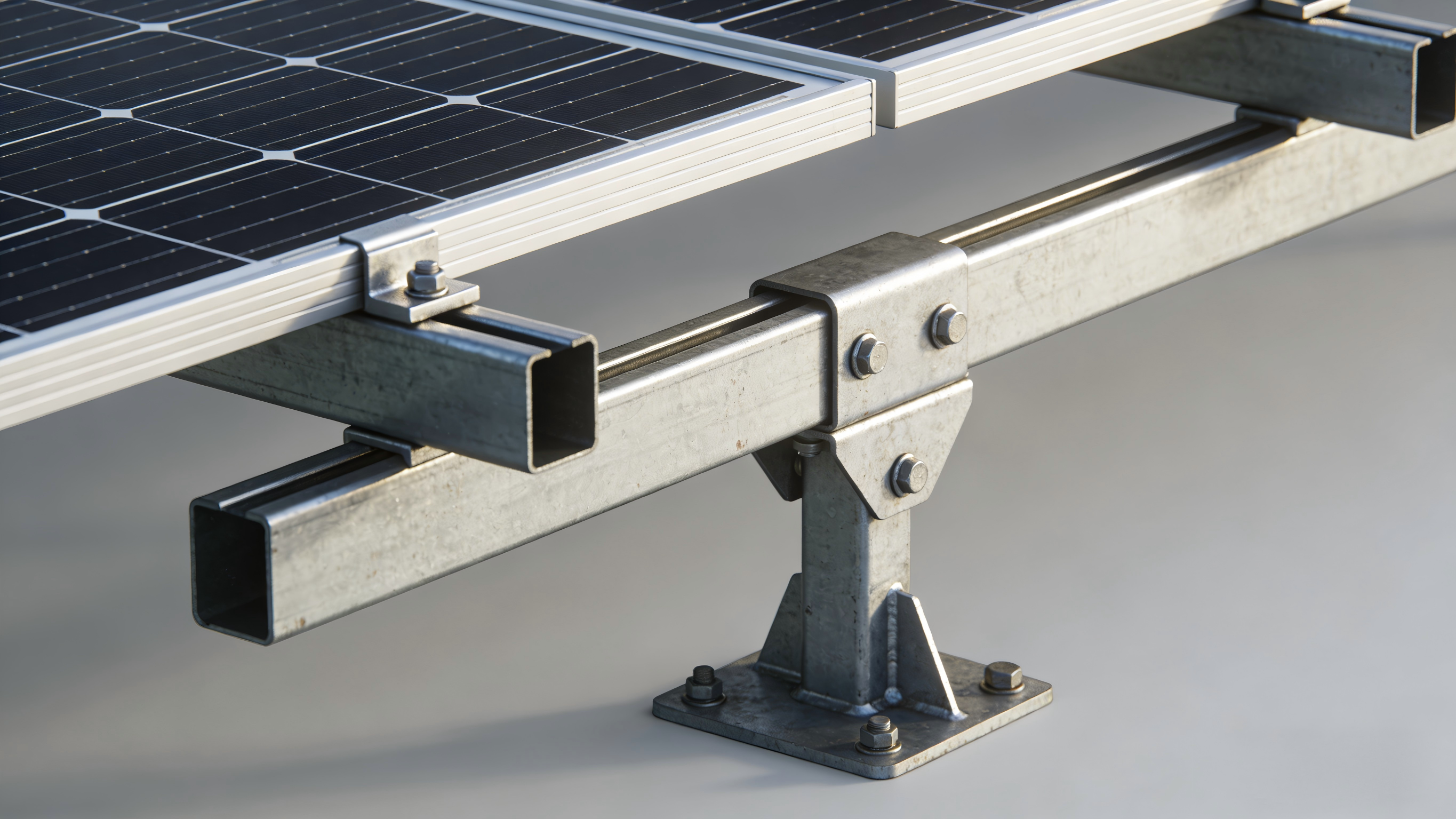

Product Overview
Our Steel Support Structure for Solar Mounting Systems is designed to provide a stable, durable, and long-lasting foundation for photovoltaic (PV) installations. Engineered with high-strength structural steel and precision fabrication technology, our mounting structures ensure optimal panel alignment, wind resistance, and structural stability.
Suitable for ground-mounted solar farms, rooftop systems, agricultural solar projects, and utility-scale photovoltaic power stations, our steel support systems offer excellent load-bearing performance and long service life in various environmental conditions.
We provide fully customized solutions based on project location, wind/snow load requirements, and installation site conditions.
Key Advantages
✔ High Structural Strength
Manufactured from Q235B / Q355B structural steel for superior load-bearing capacity.
✔ Excellent Corrosion Resistance
Hot-dip galvanized coating ensures long-term durability in coastal, desert, and high-humidity environments.
✔ Flexible & Customizable Design
Tilt angle, span, height, and foundation type can be customized.
✔ Cost-Effective Solution
Optimized structural design reduces steel consumption while maintaining strength.
✔ Easy & Fast Installation
Modular components with bolt connections reduce on-site labor time.
✔ Compatible with Various Solar Panels
Designed to support framed or frameless PV modules.
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Technical Features & Production Process
Structural Features
Production Process
All products are manufactured under strict quality control to ensure structural accuracy and durability.
Technical Specifications (Customizable)
| Item | Specification |
| Material | Q235B / Q355B Structural Steel |
| Surface Treatment | Hot-Dip Galvanized |
| Coating Thickness | 65–85 μm (customizable) |
| Installation Type | Ground Mounted / Rooftop |
| Tilt Angle | 5°–45° (customizable) |
| Wind Load | Up to 60 m/s (custom design available) |
| Snow Load | Up to 1.5–2.0 kN/m² |
| Foundation Type | Ground Screw / Concrete Foundation |
| Service Life | 20–25 Years |
Application Scenarios
Our solar mounting support structures are widely used in:
Suitable for flat terrain, sloped land, desert areas, coastal regions, and heavy wind zones.
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Why Choose Us
✔ Experienced Steel Structure Manufacturer
✔ Professional Engineering Team for Load Calculation
✔ Optimized Structural Design for Cost Reduction
✔ Strict Quality Inspection & International Standards Compliance
✔ Competitive Factory Direct Pricing
✔ Export Experience & Global Shipping Support
We provide technical drawings, structural calculation reports, and installation guidance upon request.
