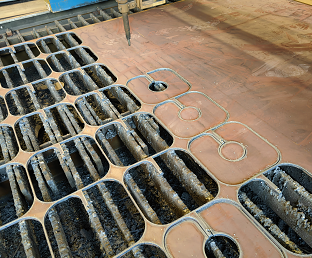

Wear resistant steel cutting parts

Description

1. High wear resistance
(1) The carbon content in the alloy layer of bimetal wear-resistant plate is 4.5-5.5%, the chromium content is more than 30%, the volume fraction of Cr7C3 carbide in the wear-resistant layer is 50-70%, the macro hardness is hrc60-64, and the micro hardness of chromium carbide is hv1400-1800. The distribution direction of carbide is perpendicular to the wear direction, which greatly enhances the service life of the wear-resistant layer.
(2) In addition, ceramic wear-resistant particles can be added according to actual working conditions and customer requirements, with small particle size, which can enhance the overall hardness of the matrix and improve the wear resistance of the material.
(3) The wear resistance of self-developed and designed bimetal wear-resistant plate is 15-20 times that of ordinary carbon steel; 7-8 times of high manganese steel; 6 times of stainless steel; 8 times of alloy cast steel.

2. It has good high strength and impact resistance
The base plate of the composite wear-resistant plate is made of ductile materials such as low carbon steel, low alloy steel or stainless steel, which shows the advantages of bimetal. The wear-resistant layer resists the wear of the wear medium, and the substrate bears the load of the medium, so it has good impact resistance.

3. Good reprocessability
Composite wear-resistant plate can be cut, leveled, punched, bent and crimped. It can be made into flat plate, arc plate, cone plate and cylinder. The cut composite wear-resistant plate can be welded into various engineering structures or parts. The composite wear-resistant plate can also be heated and pressed into a complex shape with a mold. The composite wear-resistant plate can be fixed on the equipment by bolts or welding, which is convenient for replacement and maintenance.

4. High cost performance
Although the manufacturing cost of composite wear-resistant plate is higher than that of ordinary steel or wear-resistant materials, its service life is increased several times, which greatly reduces the maintenance cost and shutdown loss. Its price performance is about 2-4 times higher than that of ordinary materials. The greater the material handling capacity, the more serious the equipment wear, the more obvious the economic effect of using wear-resistant composite steel plate.


Product Attributes

Trade Information

● Unit of Measurement: Ton

● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

● Minimum Order Quantity (MOQ): 100 Tons

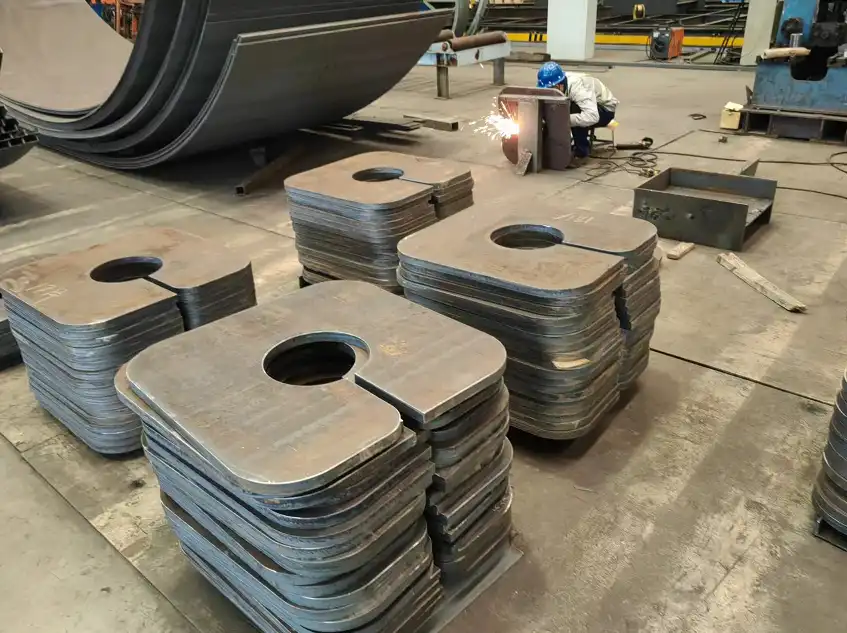

Our Factory

Raw material storageMaterial cuttingAutomatic Welding

Manual weldingWeld seam treatmentDeep processing

PaintingDeliveryPackaging
