Steel Structure Exhibition Center
- Product Model: ASTM A36/ASTM A572GR50/EN S355JR/S355J2 Steel Structure
- Unit of Measurement: Ton
- Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
- Overview
- Recommended Products
Description

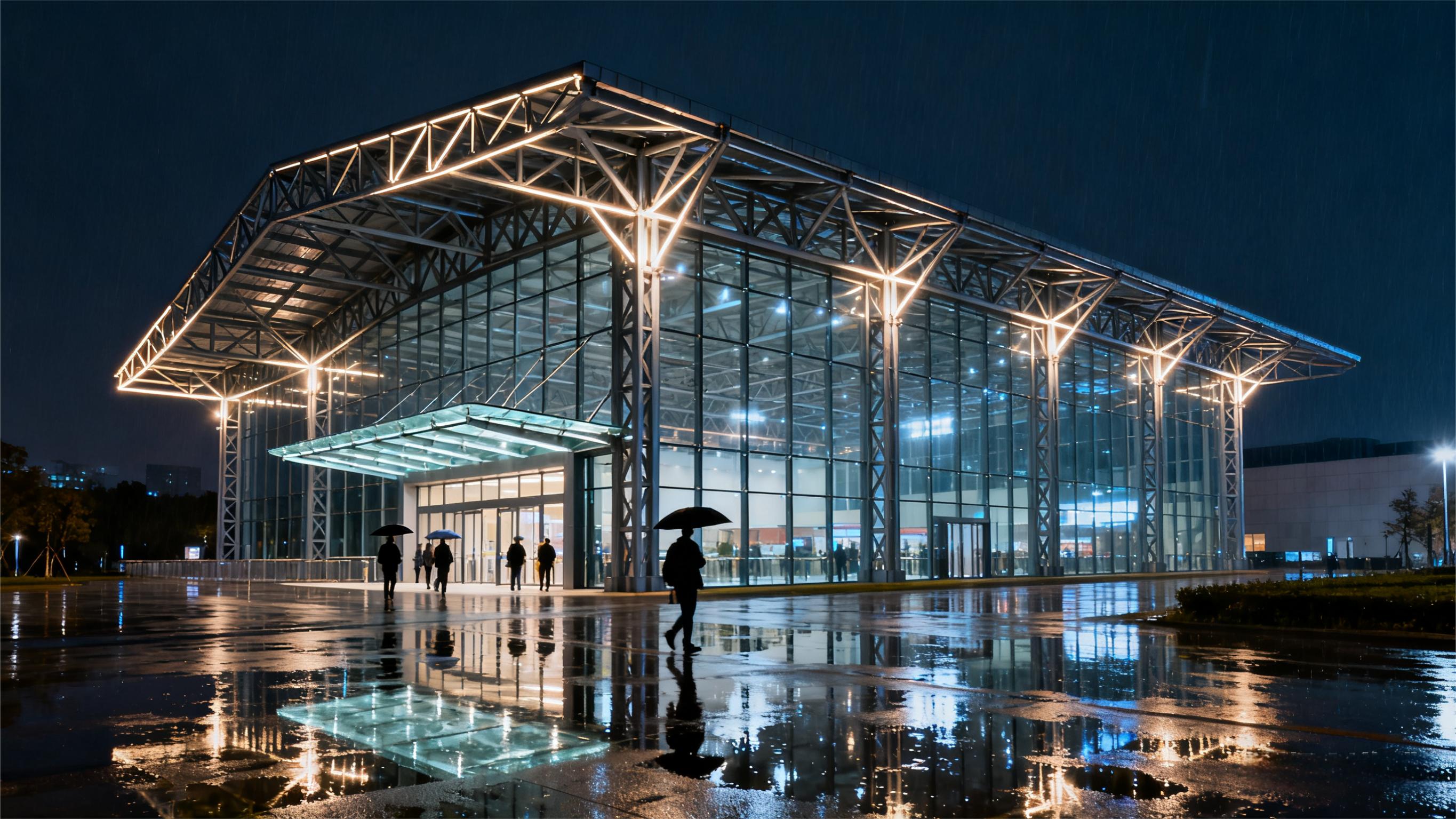

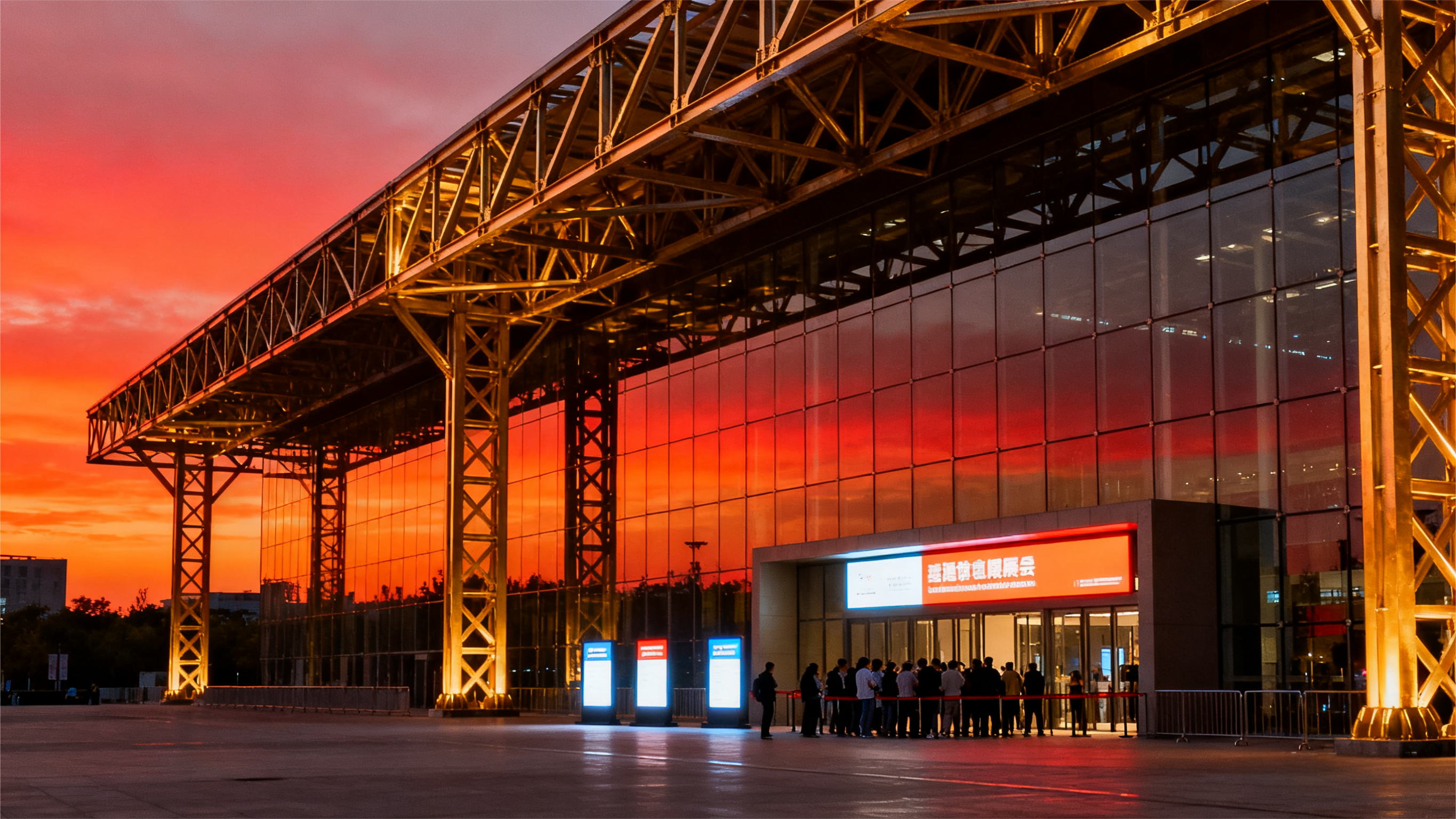

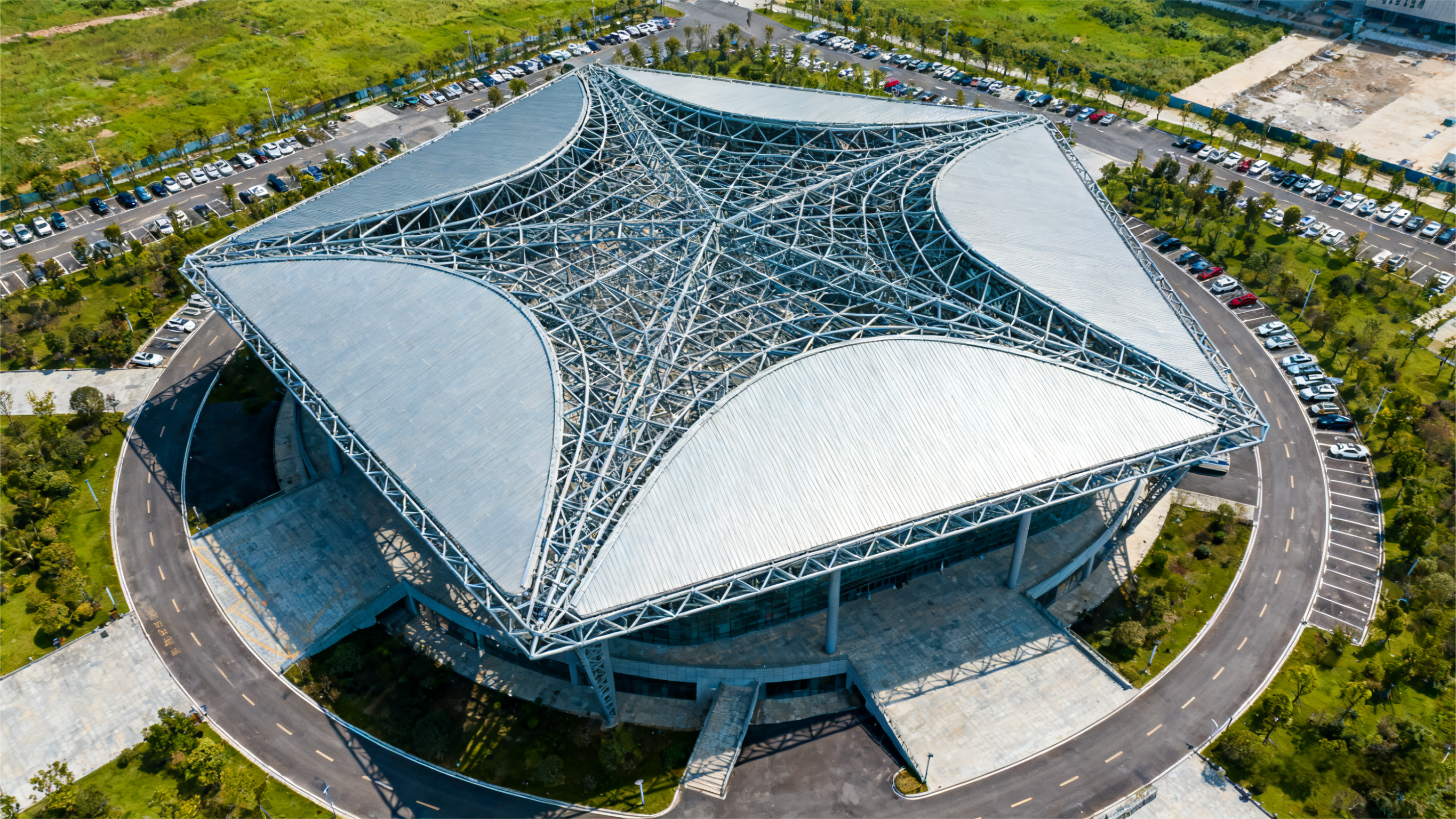

The Steel Structure Exhibition Center is a high-capacity, long-span architectural solution specifically designed for trade halls, conference pavilions, expo centers, art exhibitions, commercial display venues, convention spaces, and multifunctional events.
Characterized by wide column-free spans, fast construction, flexible interior configuration, and modern architectural aesthetics, steel exhibition centers are ideal for large visitor flow and high-capacity commercial activities.
Using high-strength structural steel such as Q355/Q460/S355/ASTM A572, combined with modular prefabrication and precision 3D modeling, the exhibition center achieves high stability, faster erection, and diverse façade design possibilities.
Product Attributes
| After-sales Service | On site installation or installation guidance |
| Warranty Period | 1 year |
| Transportation Packaging | Container or bulk carrier transportation |
| Specification | Based on actual project products |
| Brand | Guoshun |
| Place of Origin | Jinan |
| Standard | European, American, and National Standards |
| Surface Treatment | Spray painting or galvanizing |
Trade Information
● Unit of Measurement: Ton
● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.
● Minimum Order Quantity (MOQ): 100 Tons
Key Advantages
Clear span available from 40m – 120m+
Suitable for large exhibitions, booths, stage equipment and crowds
Maximizes display space and visitor circulation efficiency
② Fast Construction with Full Prefabrication
30–50% shorter construction period vs. concrete
Factory machining → bolt-on installation
Minimizes disruption to surrounding commercial areas
③ Flexible Layout for Event Customization
Interior space can be reconfigured for expos, conferences or festivals
Supports mezzanine levels, suspended lighting & HVAC integration
Multiple halls can be connected or separated as required
④ Strong Structure & Environmental Durability
Withstands wind, seismic load, snow load & crowd dynamic load
Optional hot-dip galvanizing / epoxy anti-corrosion system
30–50+ years service life, suitable for coastal or desert conditions
⑤ Aesthetic & Iconic External Design
Compatible with glass curtain wall, aluminum panels, ETFE membrane roofs
Supports creative architectural curves and landmark façade concepts
Enhances city branding & exhibition experience
Technical Features & Manufacturing Process
Precision Fabrication
CNC plasma/laser cutting
Robotic SAW/GMAW welding
TEKLA/BIM model detailing
Bolt-ready connections — fast on-site assembly
Quality Certification
EN1090 / ISO 3834 / AWS D1.1 welding standards
NDT – UT/MT/RT testing for structural reliability
Full pre-assembly inspection before shipment
Surface Protection Options
Hot-Dip Galvanizing (HDG)
Epoxy Zinc-Rich + PU finishing
Fireproof coating available (1–2 hours)
Roof & Wall System Options
| System | Feature |
| Standing Seam Metal Roof | Leak-proof, long lifespan |
| ETFE Membrane Roof | Lightweight, modern visual impact |
| PU / Rock Wool Sandwich Panels | Fire + heat insulation |
| Glass Curtain Wall | Modern transparent facade |
Technical Specifications
| Item | Specification |
| Material | Q355/Q460, S355/S460, ASTM A572 |
| Span Width | 40–120m+ |
| Building Height | Customizable 8–40m |
| Structure Type | Truss / Space Frame / Portal / Hybrid |
| Service Life | 30–50+ years |
| Fire Rating | 1–2 hours coating |
| Anti-Corrosion | HDG / Epoxy / PU Coating |
| Standards | EN 1090 / AISC / AS/NZS / GB |
Application Fields
Exhibition & Expo Centers
Convention / Conference Halls
Showrooms & Art Galleries
Trade Fair Complexes
Multi-Function Events & Sports Venues
Festival & Public Gathering Halls
City Landmark Exhibition Parks
Why Choose Us
20+ years experience in long-span steel structure fabrication
CE EN1090 / ISO 3834 / ASME certified
Advanced CNC + automated welding lines
Global export projects in Saudi Arabia, UAE, Qatar, Chile, Sweden
Full support from design → manufacturing → on-site guidance
Competitive pricing & large project delivery capability
Our Factory
Raw material storageMaterial cuttingAutomatic Welding
Manual weldingWeld seam treatmentDeep processing
PaintingDeliveryPackaging
