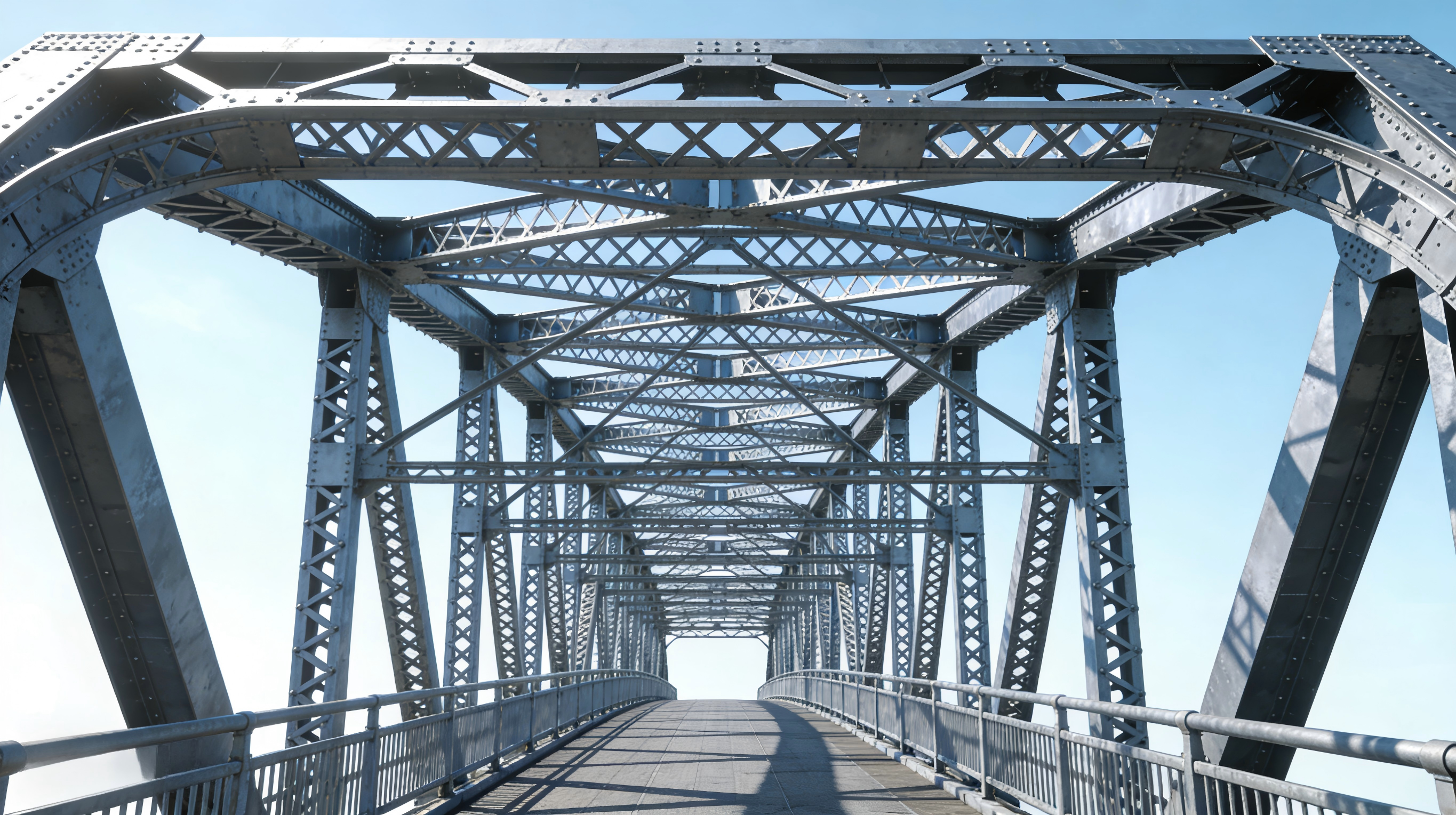

Pedestrian Steel Bridge Structure

Product Overview

Our Pedestrian Steel Bridge Structures are designed to provide safe, durable, and efficient crossing solutions for urban infrastructure, industrial facilities, and public spaces. With factory-prefabricated components and modular construction, these bridges ensure high quality, fast installation, and long-term performance under various environmental conditions.

Key Features

Reliable Structural Performance
Designed to accommodate pedestrian loads, bicycles, and maintenance vehicles in accordance with applicable standards.

Modular & Prefabricated Design
Bridge components are prefabricated in the factory, enabling rapid on-site installation and reduced traffic disruption.

Flexible Structural Forms
Options include beam bridges, truss bridges, and arch-type pedestrian bridges to suit functional and architectural needs.

Durability & Corrosion Resistance
Suitable for outdoor environments with customizable anti-corrosion systems.

Easy Maintenance
Steel structure allows convenient inspection, repair, and future upgrading.

Product Attributes

Technical Specifications

• Material Grades:
  S235 / S355 or equivalent ASTM standards

• Span Range:
  Customized based on project requirements

• Decking Options:

  • Steel plate

  • Concrete composite deck

  • Anti-slip grating

• Surface Treatment:

  • Shop primer + finish coating

  • Hot-dip galvanizing

  • Duplex coating system (for coastal or high-corrosion areas)

• Design & Fabrication Standards:
  EN standards, AASHTO (on request), or project-specific codes

Typical Applications

• Urban pedestrian overpasses

• Industrial plant walkways

• Park and landscape bridges

• Campus and commercial area crossings

• Temporary or permanent access bridges

Quality Control & Inspection

• CNC cutting and drilling for precise fabrication

• Certified welders with approved WPS/PQR

• Dimensional inspection of bridge components

• Optional NDT (UT / MT) for critical welds

• Trial assembly for key bridge sections when required

Trade Information

    ● Unit of Measurement: Ton

    ● Price Range: 1300—3000 USD/T.The specific price needs to be provided with drawings and calculated based on material requirements, processing requirements, paint requirements, etc.

    ● Minimum Order Quantity (MOQ): 100 Tons

Packaging & Delivery

• Modular packaging for container or break-bulk shipment

• Protective measures for painted and galvanized surfaces

• Clear marking for assembly sequence and site installation

Why Choose Our Pedestrian Steel Bridges

• Extensive experience in municipal and infrastructure steel projects

• Strong engineering and customization capability

• Reliable fabrication quality meeting international standards

• Practical understanding of overseas transportation and site erection
